2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

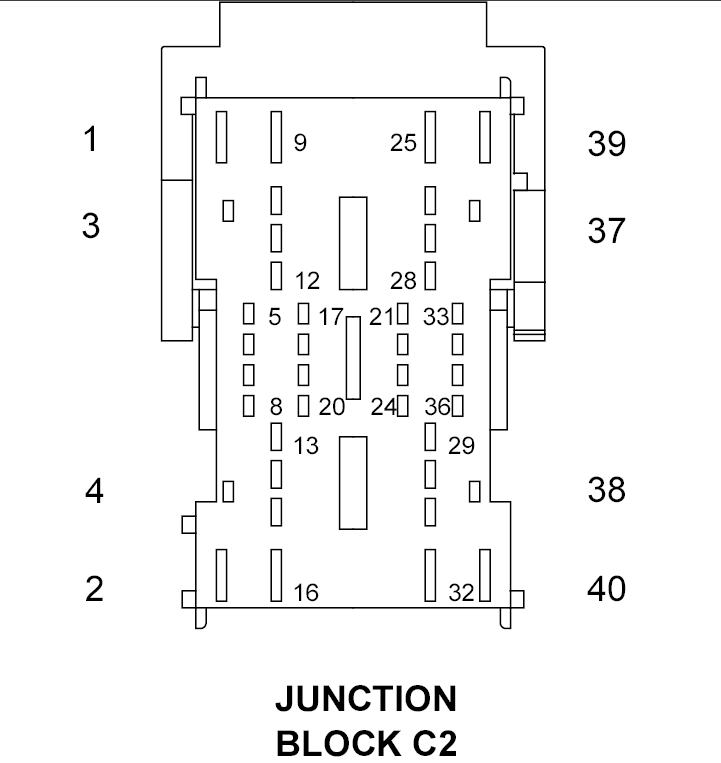

Junction Block Connector End View (C2)

JUNCTION BLOCK C2 - 40-WAY

GXK780169Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A405 14RD/DB FUSED B(+)
2 A207 16RD/LG FUSED POWER OUTLET RELAY OUTPUT
3 F941 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START)
4 F921 20PK/YL FUSED RUN RELAY OUTPUT
5 - -
6 A931 20RD FUSED B(+)
7 A931 20RD FUSED B(+)
8 - -
9 F944 16PK/LG IGNITION SWITCH OUTPUT (RUN-START)
10 F941 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 A935 20RD FUSED B(+)
12 - -
13 F921 20PK/YL FUSED RUN RELAY OUTPUT
14 F921 20PK/YL FUSED RUN RELAY OUTPUT
15 - -
16 - -
17 E2 20OR/BR PANEL LAMPS DRIVER
18 E2 20OR/BR PANEL LAMPS DRIVER
19 A931 20RD FUSED B(+)
20 C115 20DB DEFOGGER RELAY CONTROL
21 E2 20OR/BR PANEL LAMPS DRIVER
22 E2 20OR/BR PANEL LAMPS DRIVER
23 A108 20LG/RD FUSED B(+)
24 - -
25 A114 18GY/RD FUSED B(+)
26 P1 20TN/LG DRIVER DOOR UNLOCK RELAY CONTROL
27 P777 20LG/DG DOOR LOCK RELAY CONTROL
28 E2 20OR/BR PANEL LAMPS DRIVER
29 E2 20OR/BR PANEL LAMPS DRIVER
30 F103 20PK/GY IGNITION RUN/ACC RELAY CONTROL
31 F102 20PK/DB IGNITION RUN RELAY CONTROL
32 A118 16RD/OR FUSED B(+)
33 P292 20VT/LG PASSENGER DOORS UNLOCK RELAY CONTROL
34 Q82 20LG/OR FLIP-UP GLASS RELAY CONTROL
35 - -
36 - -
37 - -
38 F943 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START)
39 - -
40 A118 16RD/OR FUSED B(+)
