2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

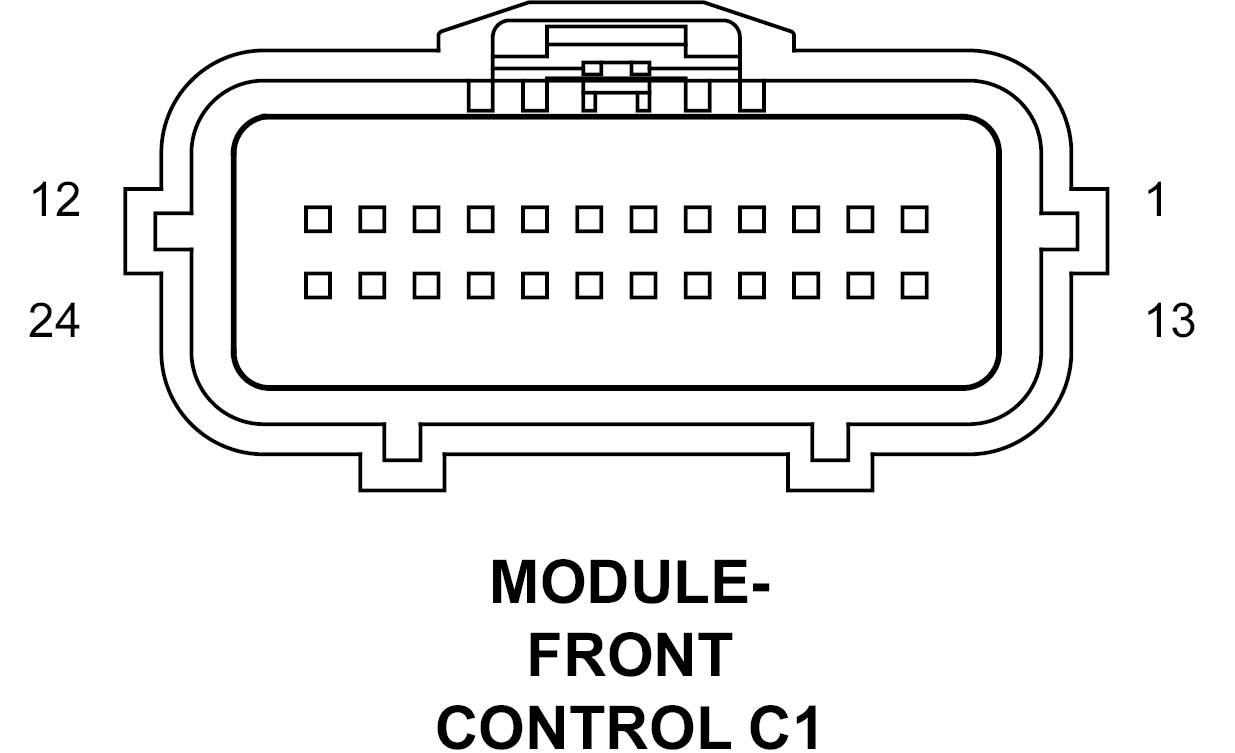

Front Control Module Connector End View (C1)

MODULE-FRONT CONTROL C1 - 24-WAY

GXK780226Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z131 18BK/DG GROUND
2 D55 20WT/OR CAN B BUS (+)
3 D54 20WT CAN B BUS (-)
4 F26 18PK/OR IGNITION SWITCH OUTPUT (START)
5 D72 20WT/LB DIAGNOSTIC CAN C (+)
6 D71 20WT/DB DIAGNOSTIC CAN C (-)
7 - -
8 D65 20WT/LG CAN C BUS (+)
9 D64 20WT/LB CAN C BUS (-)
10 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
11 C18 20LB/BR A/C PRESSURE SIGNAL
12 - -
13 L91 20WT/DB HAZARD SWITCH SENSE
14 - -
15 - -
16 F891 20PK/GY 5 VOLT SUPPLY
17 - -
18 W1 20BR/TN WASHER FLUID LEVEL SENSOR SIGNAL
19 - -
20 - -
21 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
22 Z387 18BK GROUND
23 G70 20VT/LB HOOD AJAR SWITCH SENSE (EXPORT)
24 Z131 18BK/DG GROUND
