2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

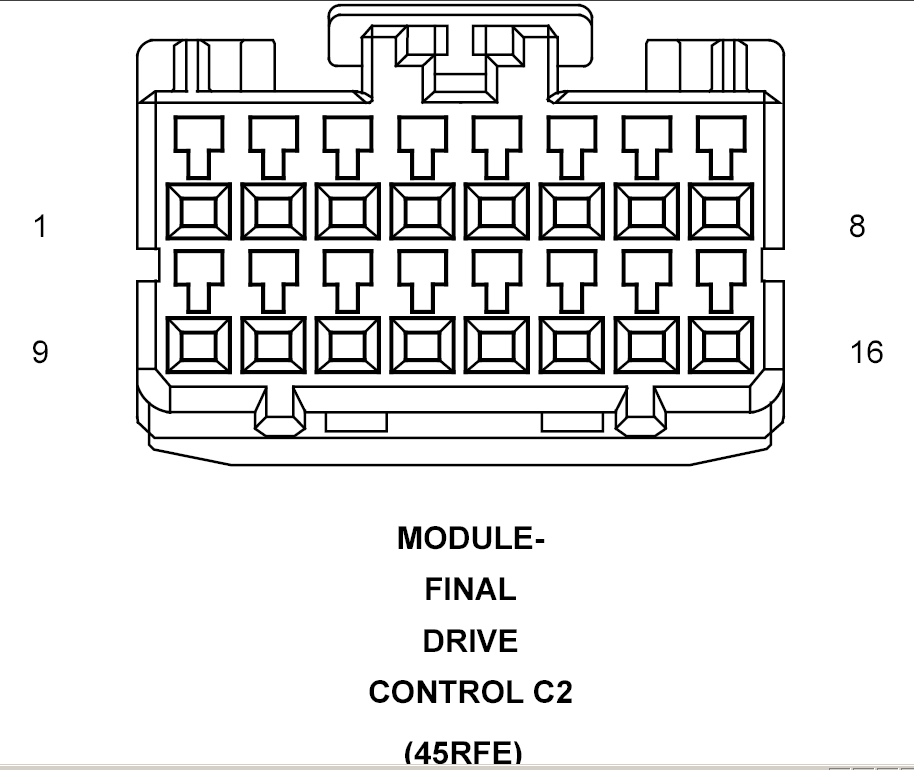

Final Drive Control Module (45RFE) Connector End View (C2)
MODULE-FINAL DRIVE CONTROL C2 - 16-WAY(45RFE)
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | G95 20VT/WT | 4WD NEUTRAL INDICATOR (ETC) |
| 3 | K977 20BR/LB | MODE SELECT (ETC) |
| 4 | - | - |
| 5 | T313 20YL/LG | MODE SENSOR SIGNAL (ETC) |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | Z902 18BK | GROUND |
| 10 | F921 20PK/GY | FUSED RUN RELAY OUTPUT |
| 11 | D65 20WT/LG | CAN C BUS (+) |
| 12 | D64 20WT/LB | CAN C BUS (-) |
| 13 | - | - |
| 14 | - | - |
| 15 | K504 20BR | DRIVETRAIN 5 VOLT SUPPLY (ETC) |
| 16 | K594 20BR/LG | DRIVETRAIN SENSOR RETURN (ETC) |
