2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

Electrohydraulic Control Unit Assembly (NAG1) Connector End View

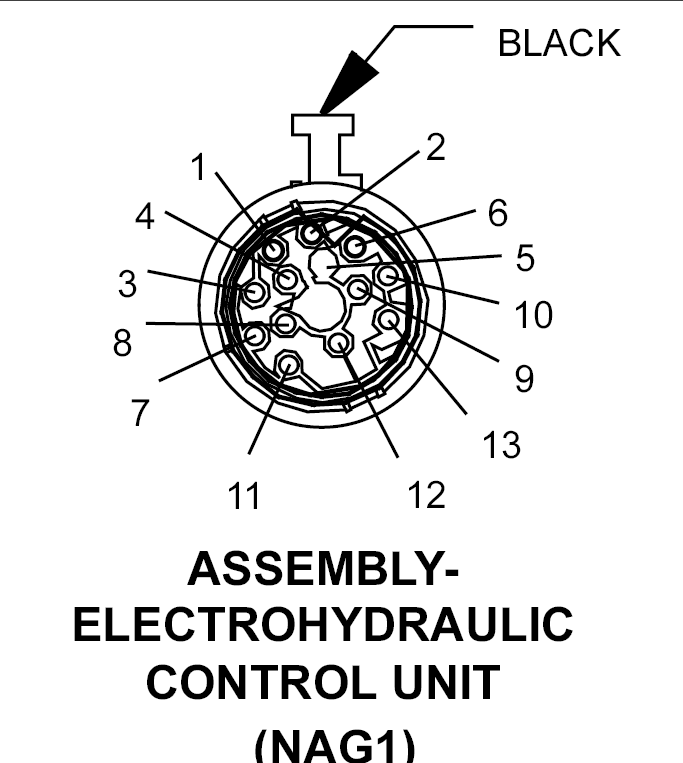

ASSEMBLY-ELECTROHYDRAULIC CONTROL UNIT - BLACK 13-WAY(NAG1)

GXK780015Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T71 20YL/OR INPUT SPEED SENSOR 2 (N3) SIGNAL
2 T76 20YL/TN MODULATION PRESSURE SOLENOID CONTROL
3 T70 20YL INPUT SPEED SENSOR 1 (N2) SIGNAL
4 T54 20DG/WT TRANSMISSION TEMPERATURE SENSOR-P/N SWITCH SIGNAL
5 - -
6 T78 18YL SOLENOID SUPPLY VOLTAGE
7 T72 20YL/DB SENSOR SUPPLY VOLTAGE
8 T74 18YL/LG 2-3 SOLENOID CONTROL
9 T73 18YL/GY 3-4 SOLENOID CONTROL
10 T77 20YL/BR SHIFT PRESSURE SOLENOID CONTROL
11 T75 18YL/LB TCC SOLENOID CONTROL
12 T13 20DG/VT SENSOR GROUND
13 T60 18DG/BK 1-2/4-5 SOLENOID CONTROL
