2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

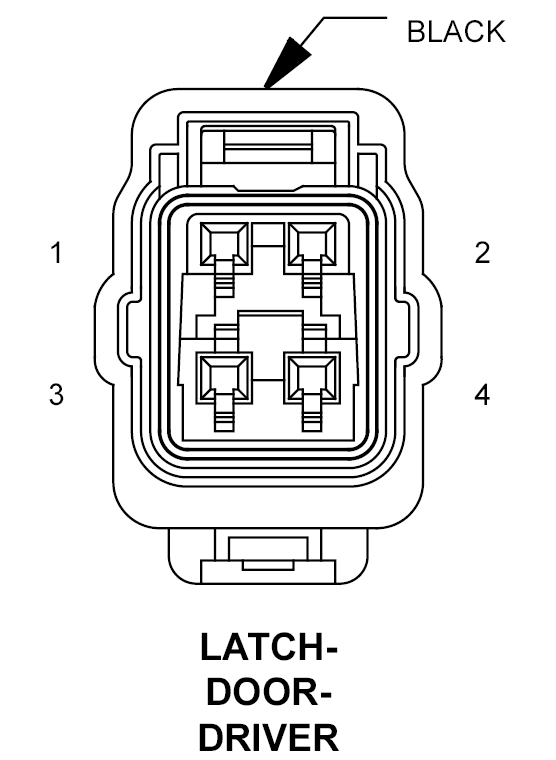

Driver Door Latch Connector End View

LATCH-DOOR-DRIVER - BLACK 4-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	G75 20VT	LEFT FRONT DOOR AJAR SWITCH SENSE (LHD)
1	G74 20VT/WT	RIGHT FRONT DOOR AJAR SWITCH SENSE (RHD)
2	Z911 20BK	GROUND
3	P701 18LG/DG	DRIVER DOOR UNLOCK RELAY OUTPUT
4	P778 18LG/LB	DOOR LOCK RELAY OUTPUT
