2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

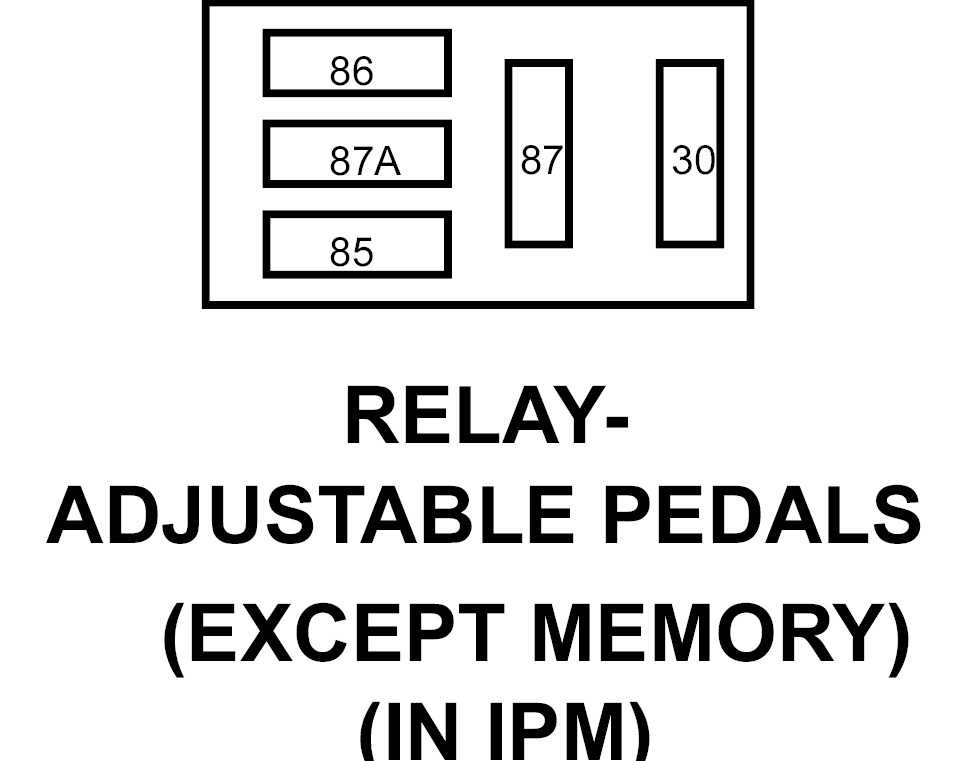

Adjustable Pedals Relay (Except Memory) Connector End View

RELAY-ADJUSTABLE PEDALS - 0-WAY(EXCEPT MEMORY)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	INTERNAL	FUSED B(+)
85	INTERNAL	ADJUSTABLE PEDALS RELAY CONTROL
86	INTERNAL	FUSED B(+)
87	-	-
87A	A72 18RD/OR	ADJUSTABLE PEDALS RELAY OUTPUT
