2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

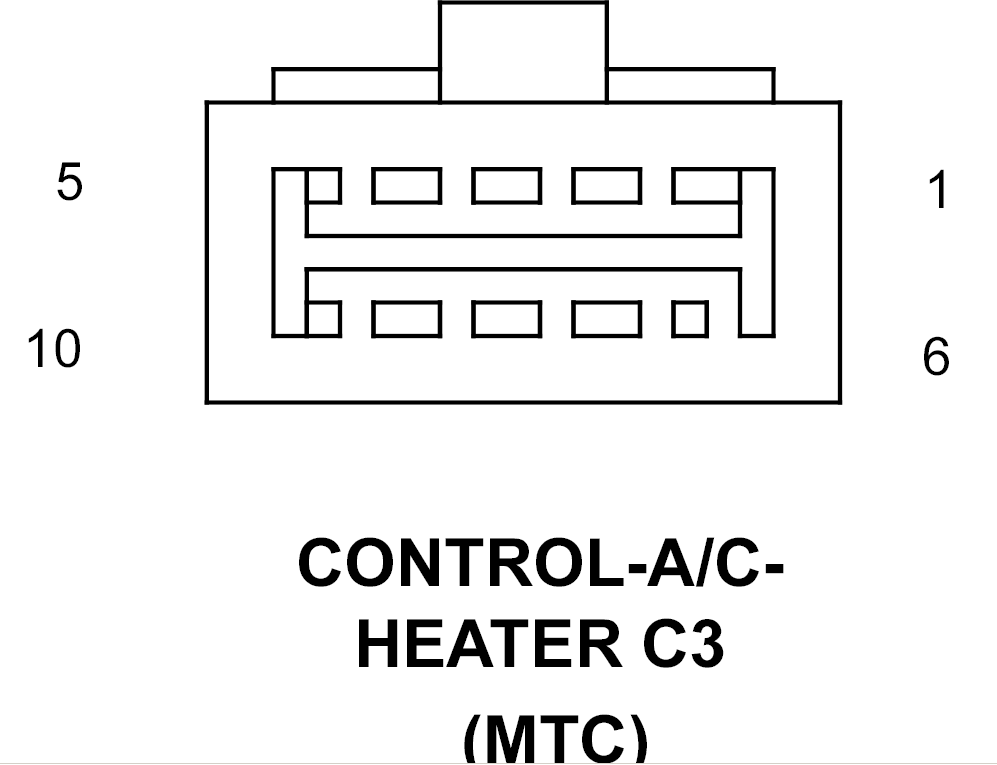

A/C Heater Control (Manual Temperature Control) Connector End View (C3)

CONTROL-A/C-HEATER C3 - 10-WAY(MTC)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C70 12LB	BLOWER HIGH SPEED
2	C41 18LG	BLOWER SWITCH POSITION SIGNAL
3	C73 12GY/LG	BLOWER M2 SPEED
4	Z134 12BK/LG	GROUND
5	-	-
6	-	-
7	-	-
8	-	-
9	C72 12OR/LG	BLOWER M1 SPEED
10	C71 20RD/LG	BLOWER LOW SPEED
