2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE
Transmission Control Module - 3.7L Gas/3.0L Diesel Vehicles
| 1 - CUT LINES |
| 2 - DASH PANEL SILENCER PAD |
| 3 - STEERING COLUMN LOCATION |
- Locate the transmission control module on the dash panel, under the dash panel silencer pad (2), just to the right of the steering column. See Fig 1.
- Locate the cut lines (1) marked on the silencer pad. Cut the pad along these lines.

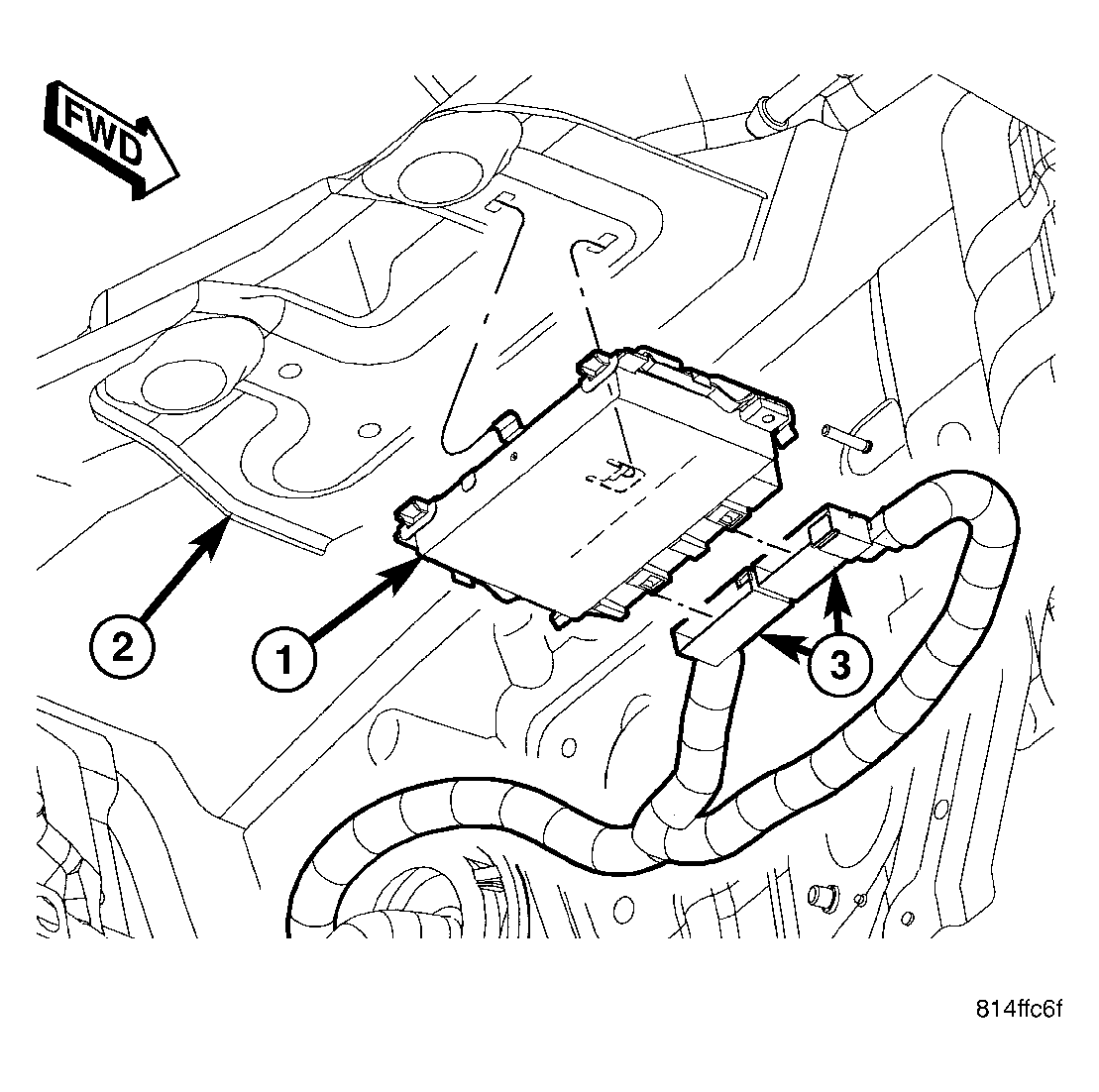

1 - TRANSMISSION CONTROL MODULE 2 - DASH PANEL 3 - WIRING CONNECTORS - Remove the transmission control module from the dash panel or bracket.
- Disconnect the wiring harness connectors (3) from the module.
- Remove the module from the vehicle.
