2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE
Adjustable Pedals Module
- Disconnect and isolate the battery negative cable.

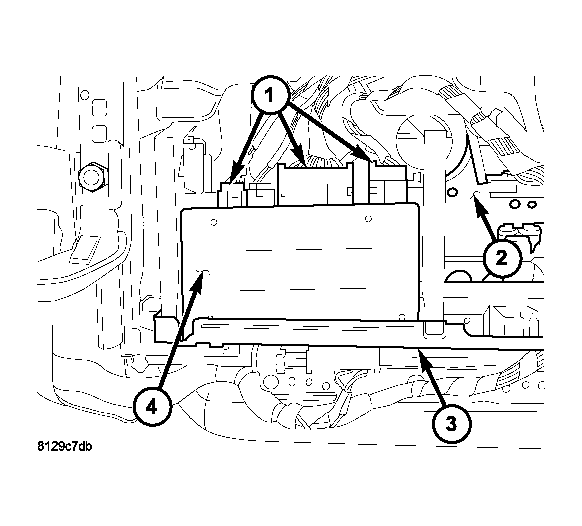

- Remove the driver seat cushion/cover (2). Refer to REMOVAL .
- Pivot the module upward and disconnect the electrical connectors (1).
- Unsnap the adjustable pedals module (4) from the side brackets.
- Pull the module rearward to remove it from the front of the seat frame (3).
