2008 Jeep Commander Limited, 5.7 2, 4WDFACTORY OEM SERVICE PROCEDURE
Switch - Full Open: Removal
- Open the liftgate.
- Disconnect and isolate the battery negative cable.
- Remove the power liftgate drive unit. See REMOVAL .CAUTION: Mark the position of the two full open switch wire terminals (2) in relation to their location in the liftgate drive unit wire connector (1).

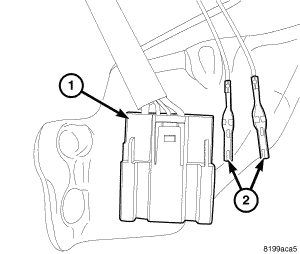

- Using an appropriate wire terminal tool, carefully remove the full open switch wire terminals (2) from the liftgate drive unit connector (1).
- Remove the full open switch retaining screw (3) from the drive unit assembly (1).

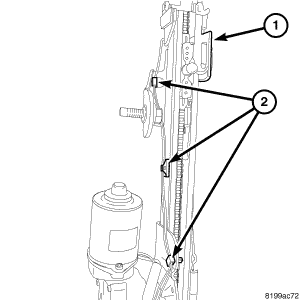

- Carefully remove the full open switch wire harness routing clips (2) from the power liftgate drive unit assembly (1).
- Remove the full open switch and wire harness.
