2008 Jeep Commander Limited, 5.7 2, 4WDFACTORY OEM SERVICE PROCEDURE

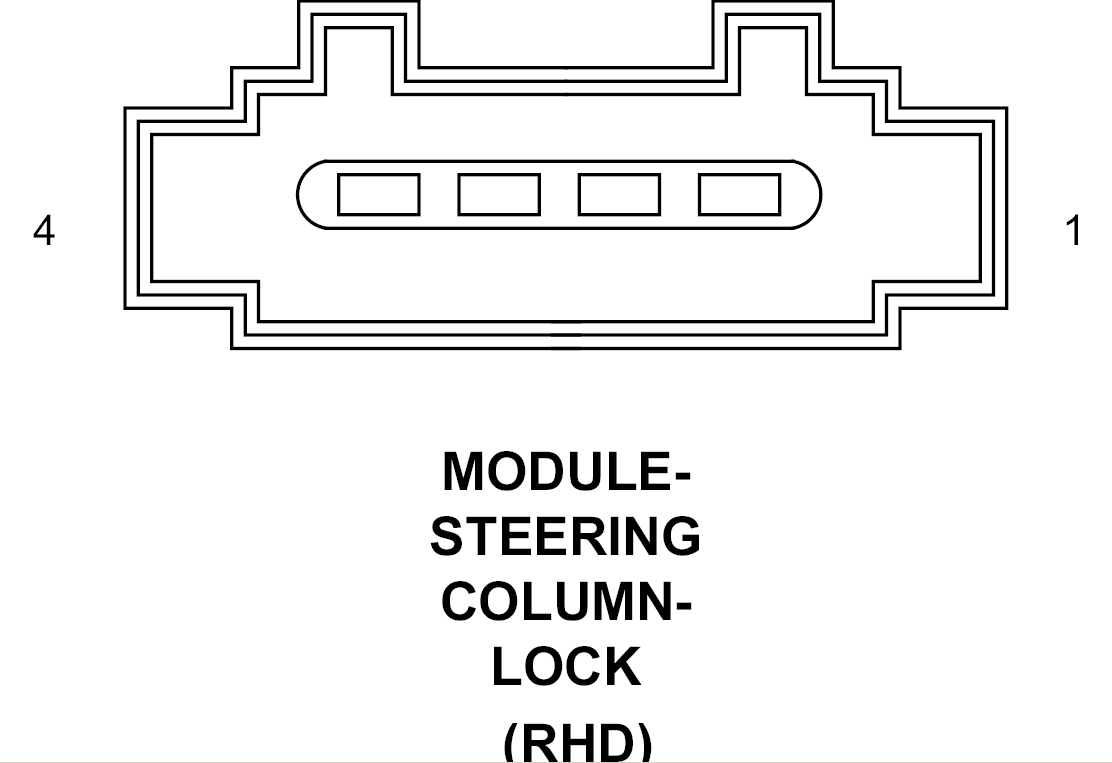

Steering Column Lock Module (RHD) Connector End View

MODULE-STEERING COLUMN-LOCK - 4-WAY(RHD)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A935 20RD	FUSED B(+)
2	Z906 18BK	GROUND
3	A306 20RD/VT	IGNITION SWITCH FEED
4	D508 20WT/GY	COM-LIN TIRE PRESSURE MONITOR LAN
