2008 Jeep Commander Limited, 5.7 2, 4WDFACTORY OEM SERVICE PROCEDURE

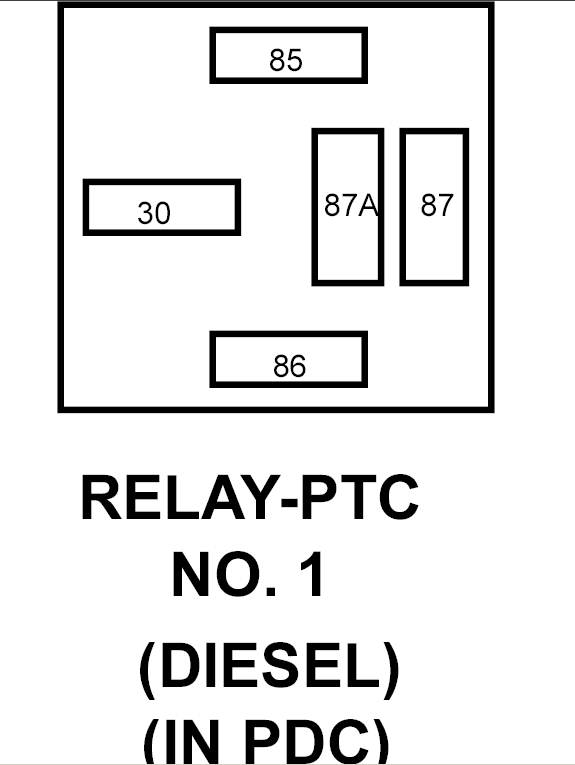

Positive Temperature Coefficient Relay 1 (Diesel) Connector End View

RELAY-PTC NO. 1 - 0-WAY(DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	A923 10RD	FUSED B(+)
85	K360 20GY/BR	PTC NO. 1 RELAY CONTROL
86	A15 16RD/TN	FUSED ASD RELAY OUTPUT
87	N113 10DB/OR	PTC NO. 1 RELAY OUTPUT
87A	-	-
