2008 Jeep Commander Limited, 5.7 2, 4WDFACTORY OEM SERVICE PROCEDURE

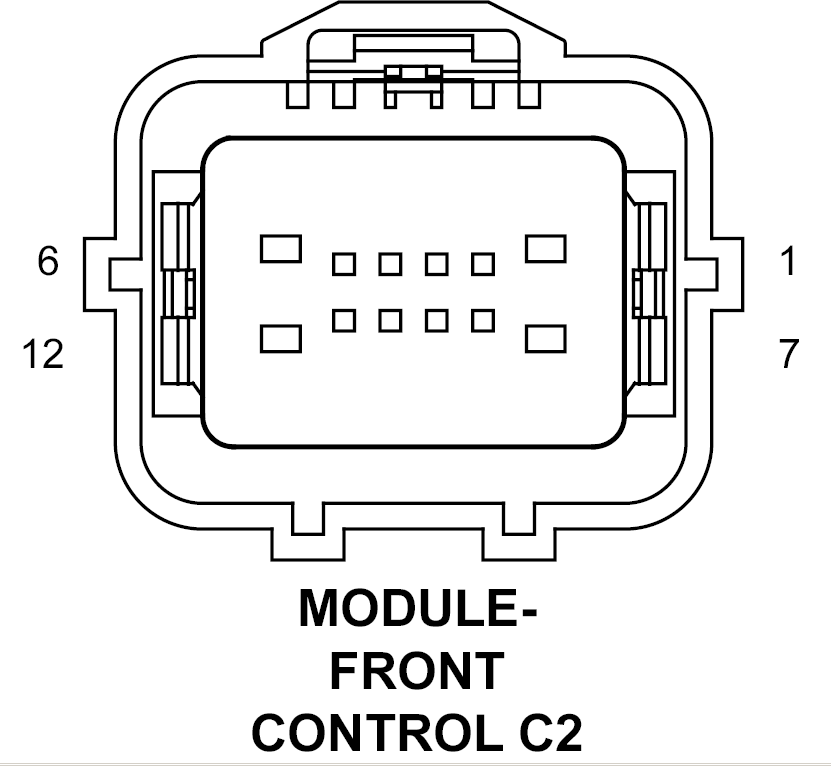

Front Control Module Connector End View (C2)
MODULE-FRONT CONTROL C2 - 12-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L44 18WT/TN | RIGHT LOW BEAM DRIVER |
| 2 | - | - |
| 3 | - | - |
| 4 | G31 20VT/OR | AAT SIGNAL |
| 5 | G931 20VT/BR | SENSOR GROUND |
| 6 | L43 18WT/DB | LEFT LOW BEAM DRIVER |
| 7 | L33 18WT/LG | LEFT HIGH BEAM DRIVER |
| 8 | L60 20WT/TN | RIGHT TURN SIGNAL |
| 9 | - | - |
| 10 | L61 20WT/LG | LEFT TURN SIGNAL |
| 11 | Z387 18BK | GROUND |
| 12 | L34 18WT/GY | RIGHT HIGH BEAM DRIVER |
