2008 Jeep Commander Limited, 5.7 2, 4WDFACTORY OEM SERVICE PROCEDURE
Power Liftgate System - Service Information: Chime: Removal
- Open the liftgate.
- Disconnect and isolate the battery negative cable.
- Using a trim stick C-4829-A or equivalent, separate the pushpin fasteners and remove the upper trim panel (2).

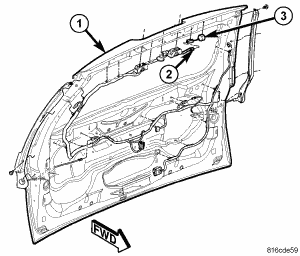

- Disconnect the chime electrical connector (2).
- Unsnap the chime (3) from the liftgate (1) and remove from the vehicle.
