2008 Jeep Commander Base, 4.7 N, RWDFACTORY OEM SERVICE PROCEDURE

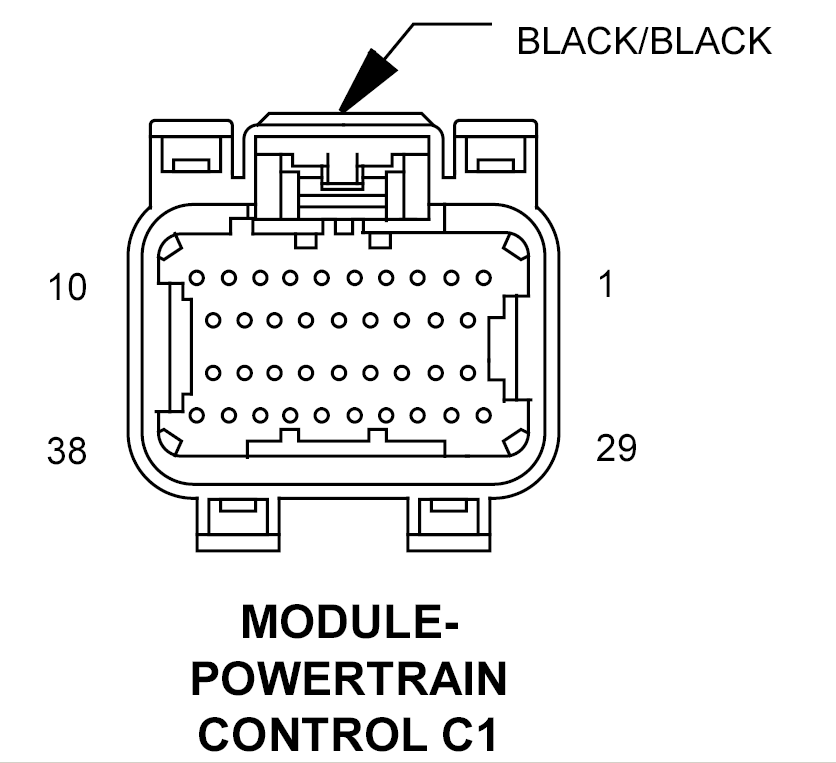

Powertrain Control Module Connector End View (C1)
MODULE-POWERTRAIN CONTROL C1 - BLACK/BLACK 38-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | K98 16DB/YL | COIL CONTROL NO. 8 (4.7L/5.7L) |
| 2 | - | - |
| 3 | K97 16BR | COIL CONTROL NO. 7 (4.7L/5.7L) |
| 4 | K28 16BR/LB | INJECTOR CONTROL NO. 8 (4.7L/5.7L) |
| 5 | K26 16BR/YL | INJECTOR CONTROL NO. 7 (4.7L/5.7L) |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | Z816 16BK | GROUND |
| 10 | A209 18RD | FUSED B(+) |
| 11 | F942 20PK/LG | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 12 | F1 20PK/WT | FUSED IGNITION SWITCH OUTPUT (RUN-START) (4.7L/5.7L) |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | Z130 16BK/BR | GROUND |
| 19 | - | - |
| 20 | G6 20VT/GY | ENGINE OIL PRESSURE SIGNAL |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | A803 16LB | GEN SENSE |
| 25 | - | - |
| 26 | - | - |
| 27 | F856 20YL/PK | 5 VOLT SUPPLY |
| 28 | K452 20BR/LB | MDS SOL CONTROL NO. 4 (5.7L) |
| 29 | A209 18RD | FUSED B(+) |
| 30 | F26 18PK/OR | IGNITION SWITCH OUTPUT (START) |
| 31 | K141 20DB/YL | O2 1/2 SIGNAL |
| 32 | K902 20BR/DG | O2 RETURN (UPSTREAM) |
| 33 | K243 20BR | O2 2/2 SIGNAL |
| 34 | D65 20WT/LG | CAN C BUS (+) |
| 35 | D64 20WT/LB | CAN C BUS (-) |
| 36 | - | - |
| 37 | - | - |
| 38 | F42 16DG/LG | FUSED ASD RELAY OUTPUT |
