2008 Jeep Commander Base, 4.7 N, RWDFACTORY OEM SERVICE PROCEDURE
Body - Interior & Exterior: Liftgate: Support-Strut: Removal

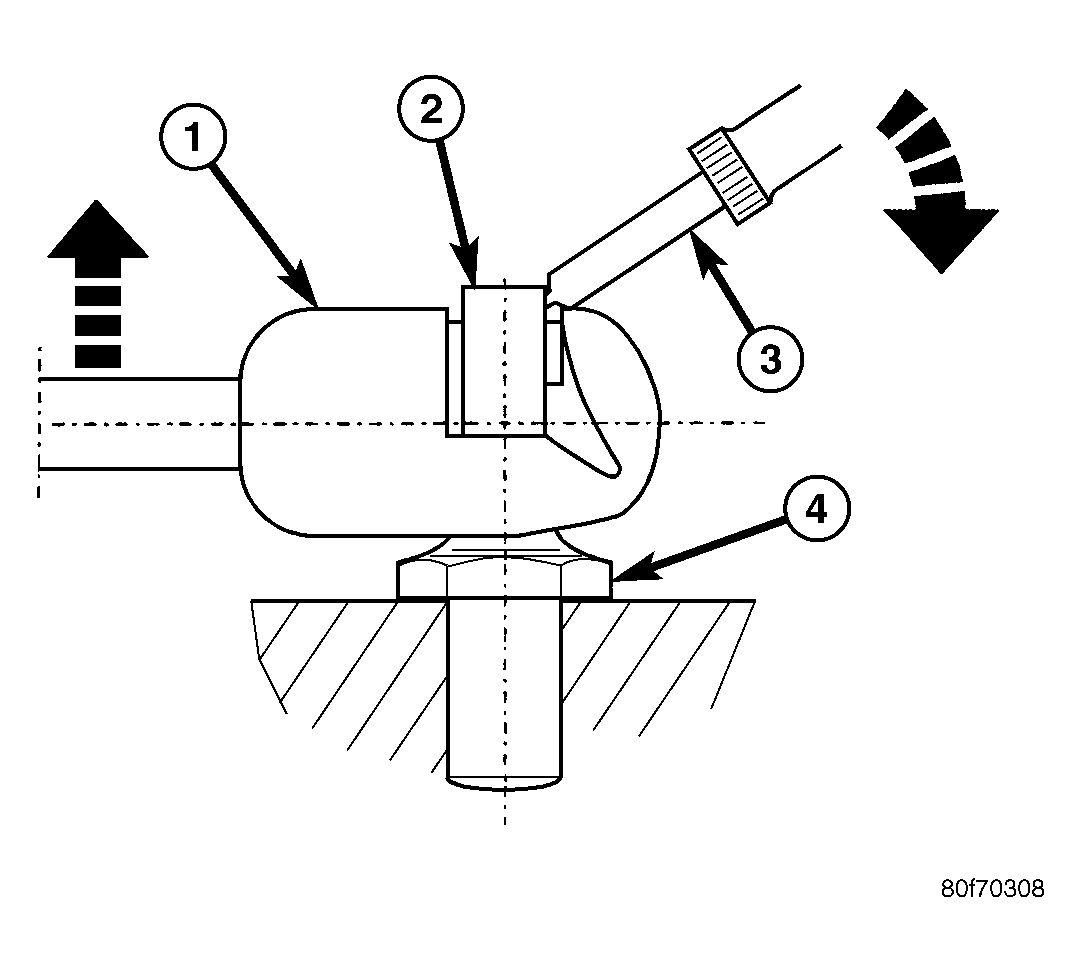

| 1 - BALL SOCKET |
| 2 - RETAINING CLIP |
| 3 - FLAT BLADED TOOL |
| 4 - BALL STUD |
WARNING:
Do not remove the liftgate glass support rods with the glass closed. The support rod pistons are operated by high pressure gas and could cause personal injury and/or vehicle damage if they are removed with the pistons compressed (liftgate closed). Once removed, do not attempt to disassemble or repair the support rods.
- Open the liftgate glass or liftgate and support.
- Using a small flat bladed tool (3), or equivalent, release the retaining clips (2) while pulling the ball socket (1) away from the ball stud (4).

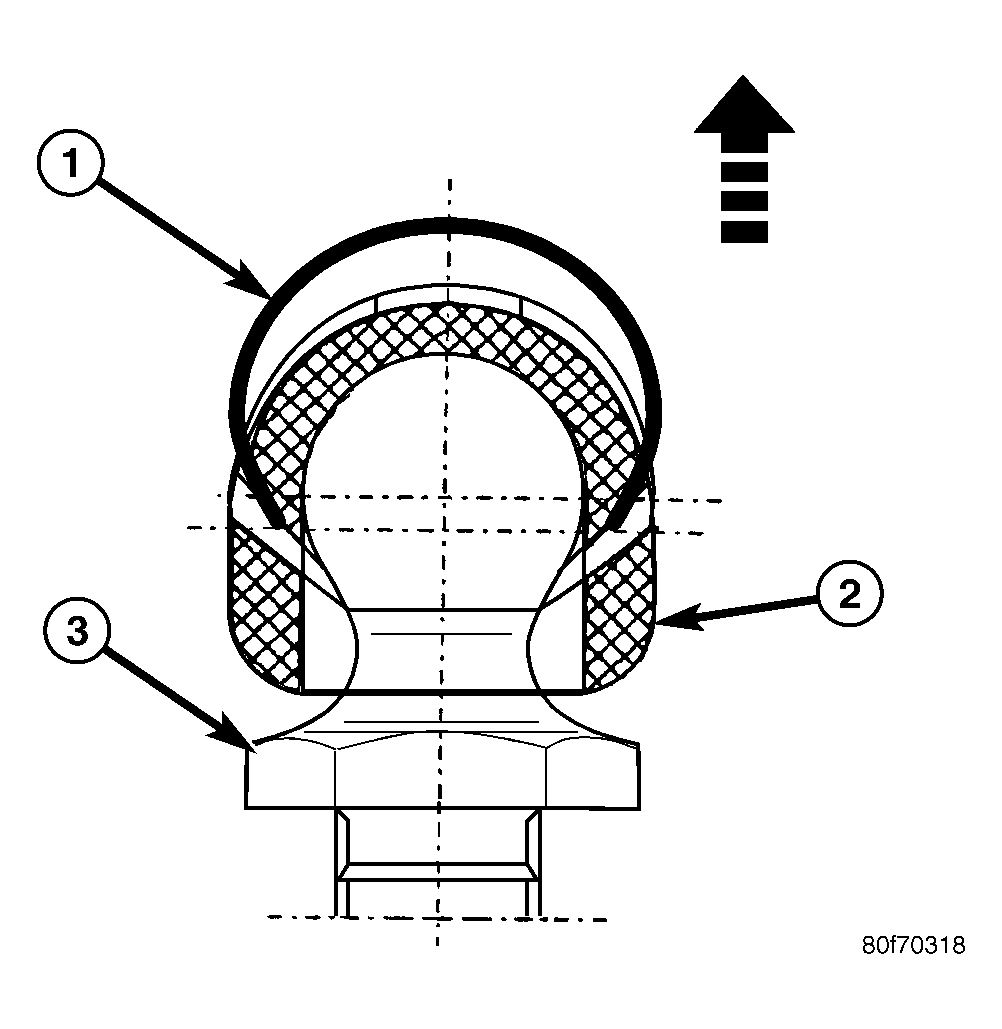

1 - RETAINING CLIP 2 - BALL SOCKET 3 - BALL STUD NOTE: Lift the clips (1) only enough to release the ball studs (3).
