Vehicle Preparation
Position the vehicle on a frame alignment rack, refer to instructions provided with equipment being used. Adjust the vehicle PLP heights to the specified dimension above the work surface (datum line). Vertical dimensions can be taken from the datum line to the locations indicated were applicable.
| DESCRIPTION | FIGURE |

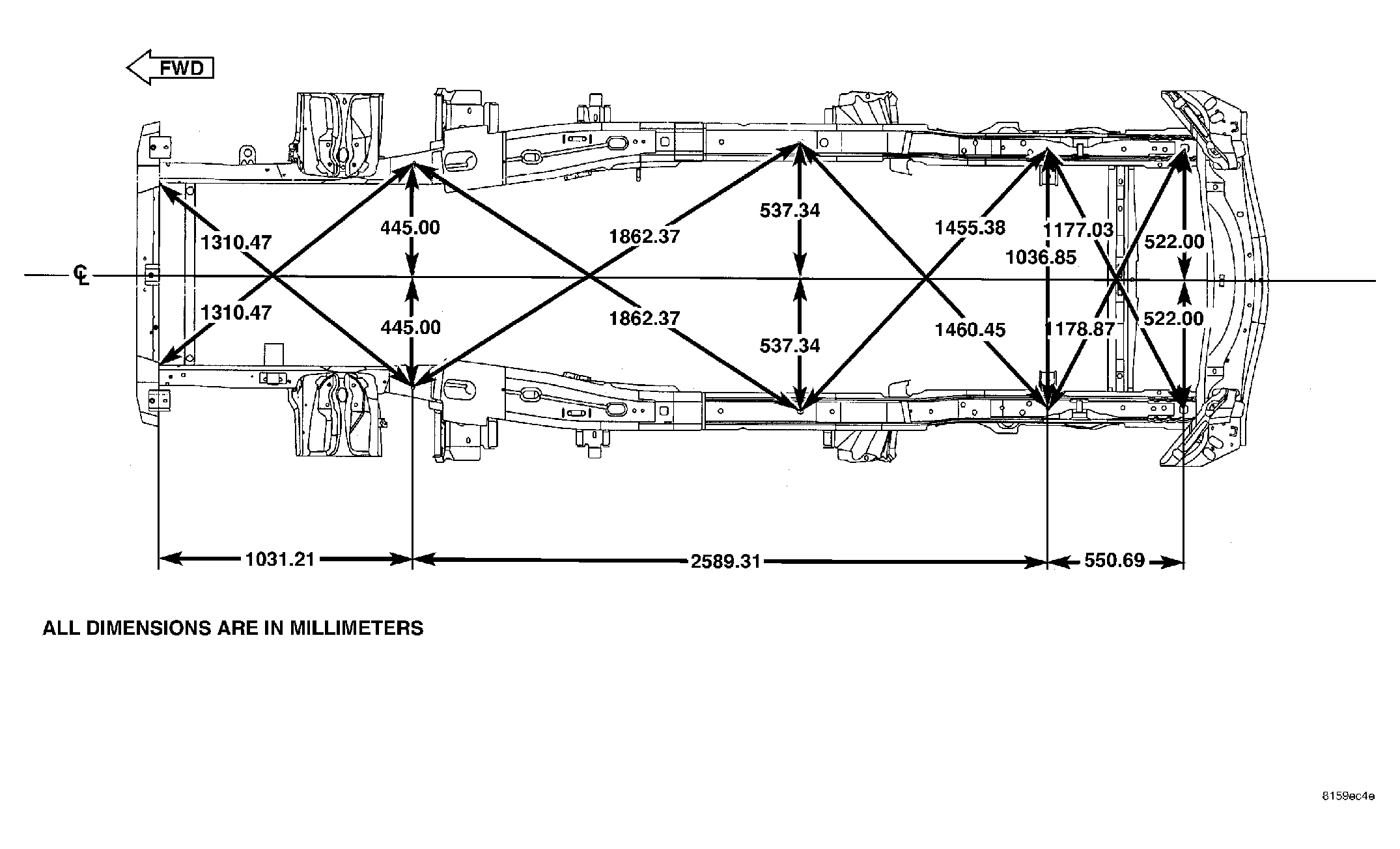

| FRAME DIMENSIONS - BOTTOM VIEW | Fig 1. |
| FRAME DIMENSIONS - SIDE VIEW | Fig 2. |
