2008 Jeep Commander Base, 3.7 K, RWDFACTORY OEM SERVICE PROCEDURE

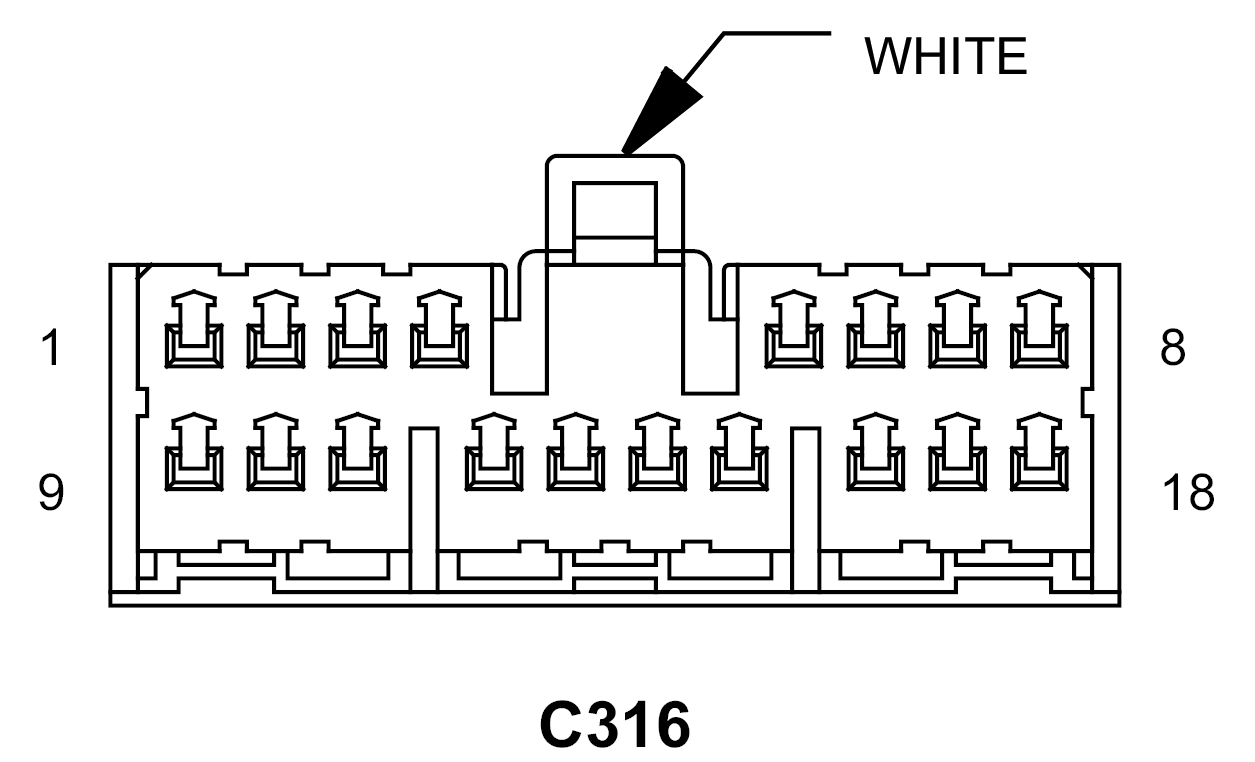

Inline Connector End View (C316 )

C316 - WHITE 18-WAYFEMALE

GXK780076Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 D55 20WT/OR CAN B BUS (+)
3 D54 20WT CAN B BUS (-)
4 - -
5 Z927 16BK GROUND
6 Q305 20OR DRIVER WINDOW HALL SENSOR SUPPLY
7 Q412 16OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
8 Q15 20OR/LB WINDOW LOCK OUT SWITCH OUTPUT
9 Q611 16OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
10 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
10 G75 20VT LEFT FRONT DOOR AJAR SWITCH SENSE
11 A929 16RD/LG FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
12 - -
13 Z911 16BK GROUND
14 A931 20RD/WT FUSED B(+)
15 A929 16RD/DB FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
16 Q321 16OR/DB DRIVER WINDOW EXPRESS DOWN DRIVER
17 Q991 20BK/OR DRIVER WINDOW HALL SENSOR RETURN
18 Q311 16OR/LB DRIVER WINDOW EXPRESS UP DRIVER

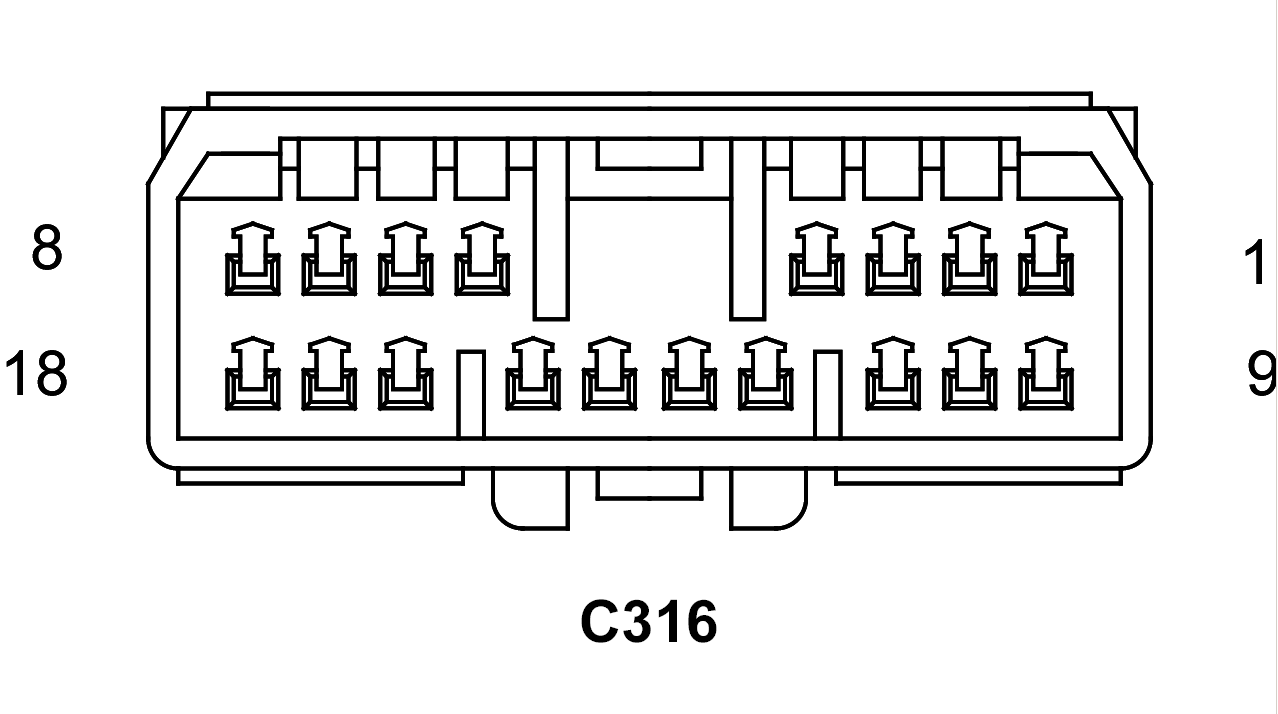

C316 - 18-WAYMALE

GXK780075Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 D55 20WT/OR CAN B BUS (+)
3 D54 20WT CAN B BUS (-)
4 - -
5 - -
6 Q305 20OR DRIVER WINDOW HALL SENSOR SUPPLY
7 Q412 16OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
8 Q15 16OR/LB WINDOW LOCK OUT SWITCH OUTPUT
9 Q611 16OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
10 - -
11 A929 16RD/DB FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
12 - -
13 Z911 16BK GROUND
14 A931 20RD/WT FUSED B(+)
15 A929 16RD/DB FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
16 Q321 16OR/DB DRIVER WINDOW EXPRESS DOWN DRIVER
17 Z405 20BK/OR GROUND
18 Q311 16OR/LB DRIVER WINDOW EXPRESS UP DRIVER
