2008 Jeep Commander Base, 3.7 K, RWDFACTORY OEM SERVICE PROCEDURE

Inline Connector End View (C303 )

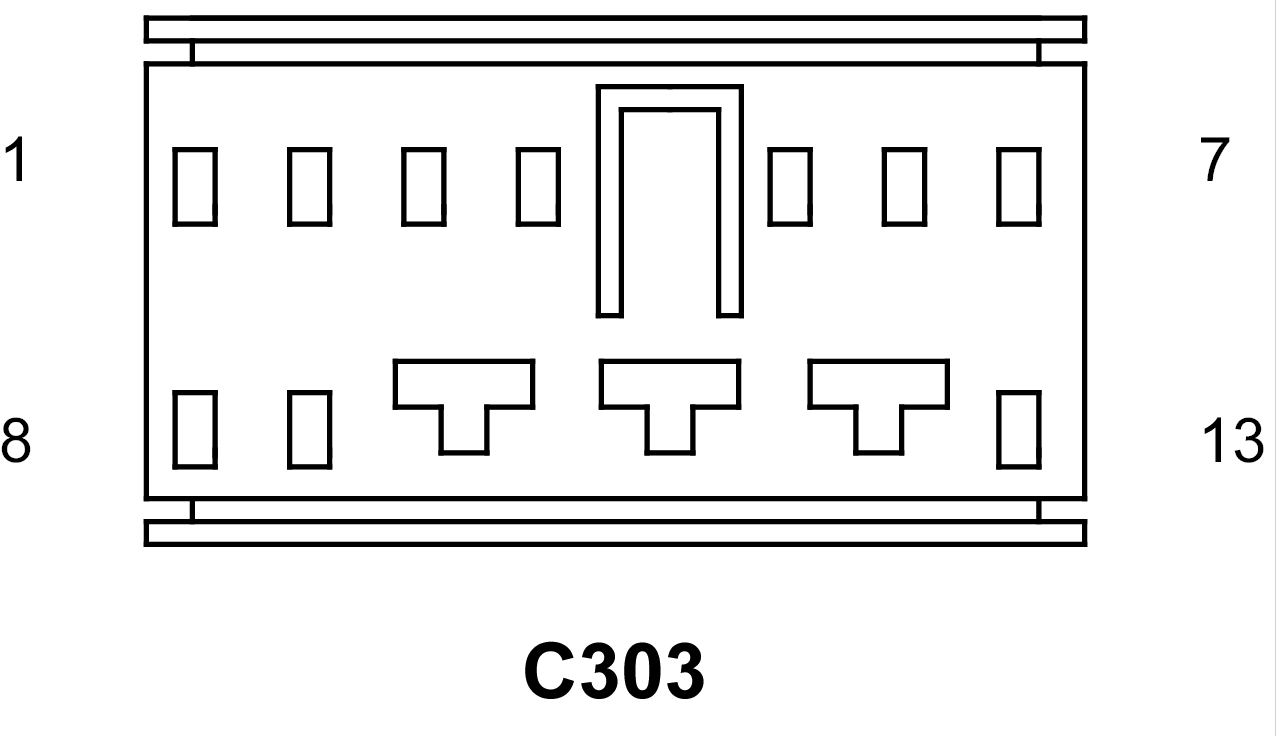

C303 - 13-WAYFEMALE

GXK780049Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 P74 20TN/OR PASSENGER MIRROR HORIZONTAL DRIVER (EXCEPT MEMORY)
2 - -
3 X299 18GY/YL LEFT I/P SPEAKER (-) (BASE AUDIO LHD)
3 X298 18GY/LG RIGHT I/P SPEAKER (-) (BASE AUDIO RHD)
3 X291 18GY/YL LEFT I/P SPEAKER (-) (PREMIUM AUDIO LHD)
3 X292 18DG/YL RIGHT I/P SPEAKER (-) (PREMIUM AUDIO RHD)
4 X209 18GY/OR LEFT I/P SPEAKER (+) (BASE AUDIO LHD)
4 X208 18GY/DG RIGHT I/P SPEAKER (+) (BASE AUDIO RHD)
4 X201 18GY/VT LEFT I/P SPEAKER (+) (PREMIUM AUDIO LHD)
4 X202 18DG/VT RIGHT I/P SPEAKER (+) (PREMIUM AUDIO RHD)
5 P778 16LG/LB DOOR LOCK RELAY OUTPUT
6 - -
7 P76 20TN/LB MIRROR COMMON DRIVER (EXCEPT MEMORY)
8 - -
9 A929 16RD FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
10 A929 16RD FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
11 Z911 14BK GROUND
12 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
13 Z927 16BK GROUND

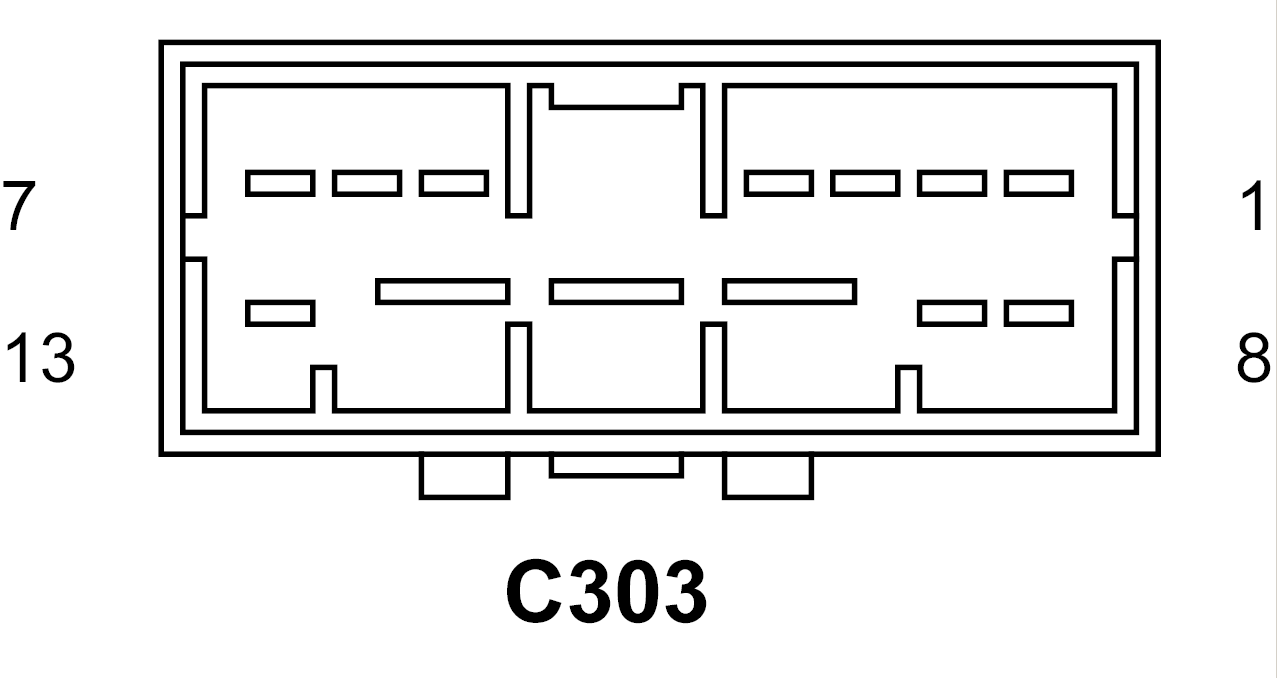

C303 - 13-WAYMALE

GXK780050Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 P74 20TN/OR PASSENGER MIRROR HORIZONTAL DRIVER (EXCEPT MEMORY)
2 - -
3 X291 18GY/YL LEFT I/P SPEAKER (-)
4 X201 18GY/VT LEFT I/P SPEAKER (+)
5 P778 16LG/LB DOOR LOCK RELAY OUTPUT
6 - -
7 P76 20TN/LB MIRROR COMMON DRIVER (EXCEPT MEMORY)
8 - -
9 A929 16RD/DB FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
10 A929 16RD/LG FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
11 Z911 16BK GROUND
12 Q15 16OR/LB WINDOW LOCK OUT SWITCH OUTPUT
13 Z927 16BK GROUND
