2008 Jeep Commander Base, 3.7 K, RWDFACTORY OEM SERVICE PROCEDURE

Inline (Diesel/3.7L A/T) Connector End View (C114)

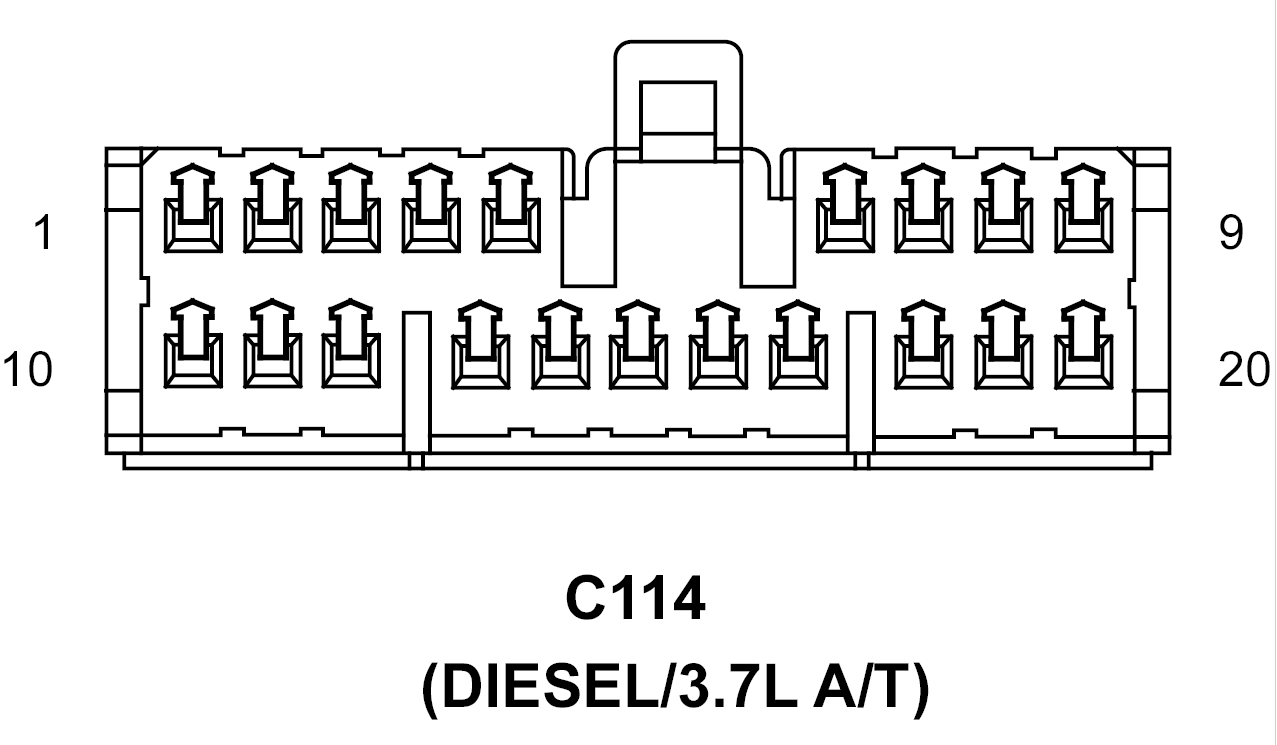

C114 - 20-WAY(DIESEL/3.7L A/T) FEMALE

GXK780034Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 D223 20WT/VT SCI TRANSMIT (PCM)
2 T76 20YL/TN MODULATION PRESSURE SOLENOID CONTROL
3 T71 20YL/OR INPUT SPEED SENSOR 2 (N3) SIGNAL
4 T74 18YL/LG 2-3 SOLENOID CONTROL
5 T75 18YL/LB TCC SOLENOID CONTROL
6 T60 18DG/BK 1-2/4-5 SOLENOID CONTROL
7 T73 18YL/GY 3-4 SOLENOID CONTROL
8 T72 20YL/DB SENSOR SUPPLY VOLTAGE
9 T77 20YL/BR SHIFT PRESSURE SOLENOID CONTROL
10 - -
11 T78 18YL SOLENOID SUPPLY VOLTAGE
12 D65 20WT/LG CAN C BUS (+)
13 D64 20WT/LB CAN C BUS (-)
14 F946 20PK/LG TRANSMISSION RELAY OUTPUT
15 T13 20DG/VT SENSOR GROUND
16 T54 20DG/OR TRANSMISSION TEMPERATURE SENSOR SIGNAL
17 Z904 18BK GROUND
18 T70 20YL INPUT SPEED SENSOR 1 (N2) SIGNAL
19 - -
20 - -

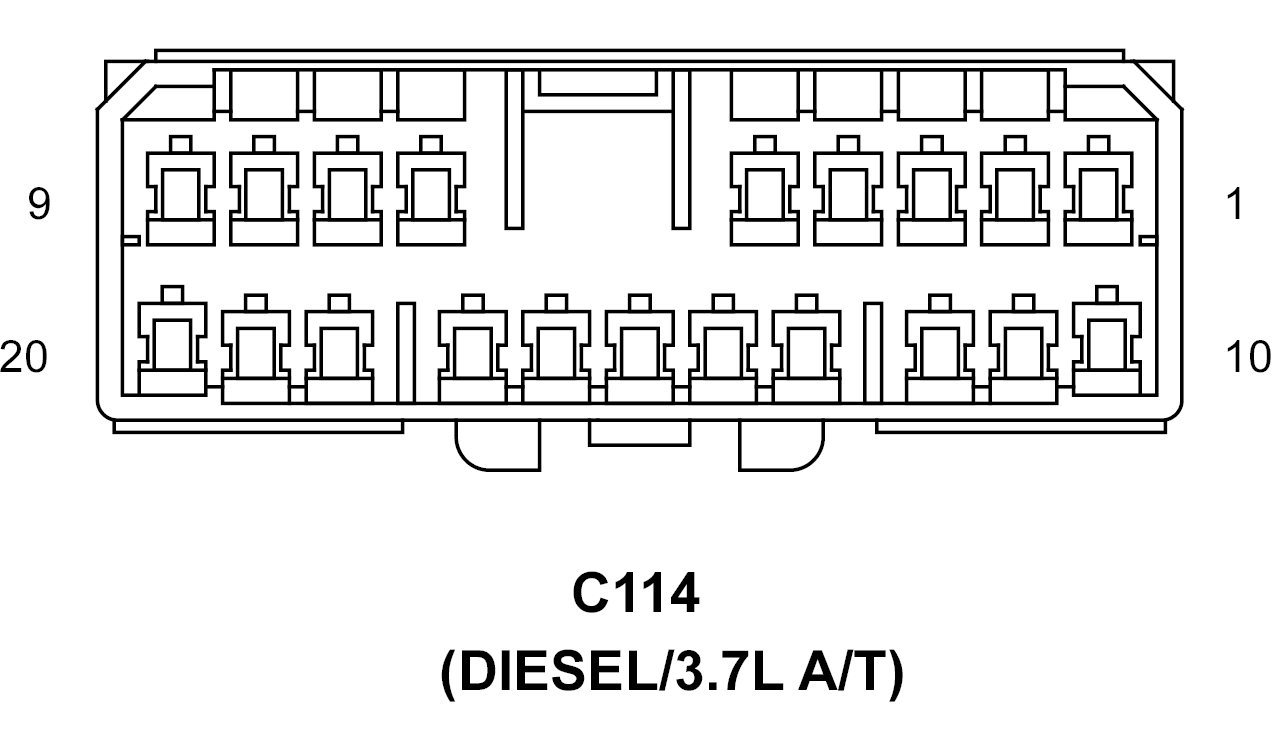

C114 - 20-WAY(DIESEL/3.7L A/T) MALE

GXK780033Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 T76 20YL/TN MODULATION PRESSURE SOLENOID CONTROL
3 T71 20YL/OR INPUT SPEED SENSOR 2 (N3) SIGNAL
4 T74 18YL/LG 2-3 SOLENOID CONTROL
5 T75 18YL/LB TCC SOLENOID CONTROL
6 T60 18DG/BK 1-2/4-5 SOLENOID CONTROL
7 T73 18YL/GY 3-4 SOLENOID CONTROL
8 T72 20YL/DB SENSOR SUPPLY VOLTAGE
9 T77 20YL/BR SHIFT PRESSURE SOLENOID CONTROL
10 - -
11 T78 18YL SOLENOID SUPPLY VOLTAGE
12 D65 20WT/LG CAN C BUS (+)
13 D64 20WT/LB CAN C BUS (-)
14 F946 20PK/LG TRANSMISSION RELAY OUTPUT
15 T13 20DG/VT SENSOR GROUND
16 T54 20DG/WT TRANSMISSION TEMPERATURE SENSOR-P/N SWITCH SIGNAL
17 Z904 18BK GROUND
18 T70 20YL INPUT SPEED SENSOR 1 (N2) SIGNAL
19 - -
20 - -
