2008 Jeep Commander 4WD V8-4.7LFACTORY OEM SERVICE PROCEDURE
C326
Component ID: 60
Component : C326

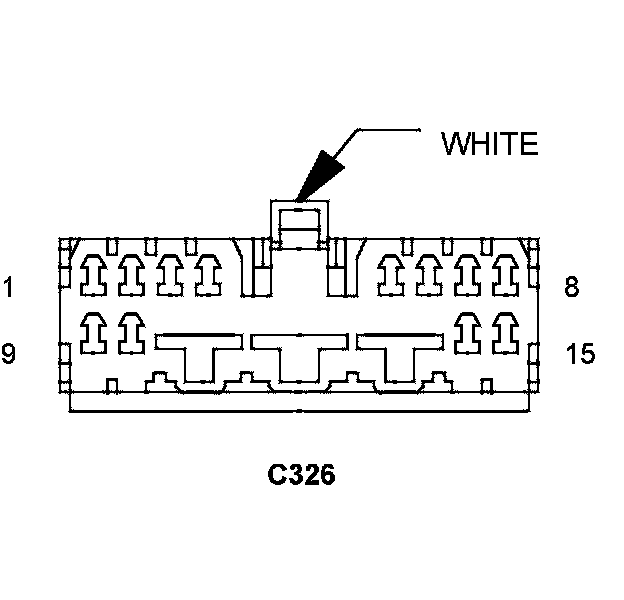

Connector:
Name : C326
Color : WHITE
# of pins : 15
Gender : MALE
Pin Circuit Description
1 - -
2 Q79 20OR/LB SECTOR SWITCH SENSE
3 W13 20BR/LG REAR WIPER MOTOR CONTROL
4 W14 20BR/LB REAR WIPER MOTOR DELAY SIGNAL
5 M22 20YL/OR COURTESY LAMPS DRIVER
6 A931 20RD/WT FUSED B(+)
7 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
8 Q94 20TN/LG LIFTGATE CHIME DRIVER
9 - -
10 A46 18RD/GY REAR WIPER RELAY OUTPUT
11 - -
12 Z800 12BK GROUND
13 C515 12LB/OR REAR WINDOW DEFOGGER RELAY OUTPUT
14 Q75 20OR/LB LEFT PINCH SENSOR SIGNAL
15 - -

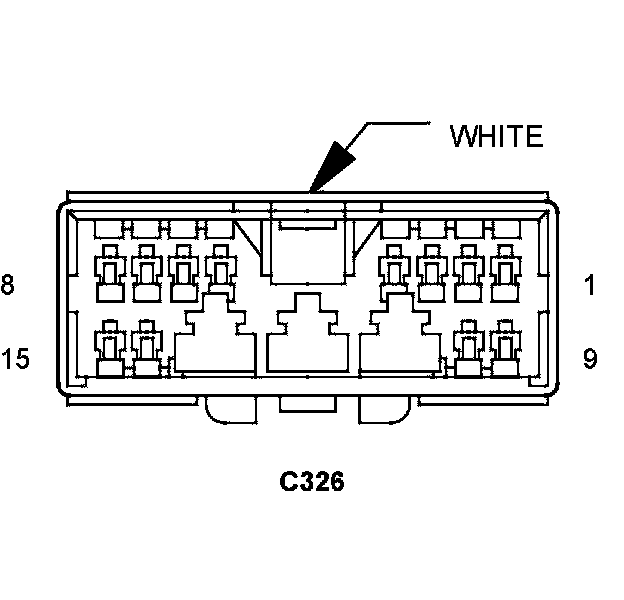

Connector:
Name : C326
Color : WHITE
# of pins : 15
Gender : FEMALE
Pin Circuit Description
1 - -
2 - -
3 W13 20BR/LG REAR WIPER MOTOR CONTROL
4 W14 20BR/LB REAR WIPER MOTOR DELAY SIGNAL
5 M22 20YL/OR COURTESY LAMPS DRIVER
6 A931 20RD FUSED B(+)
7 - -
8 - -
9 - -
10 A46 18RD/GY REAR WIPER RELAY OUTPUT
11 - -
12 Z800 12BK GROUND
13 C515 12LB/OR REAR WINDOW DEFOGGER RELAY OUTPUT
14 - -
15 - -
