INSTALLATION

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

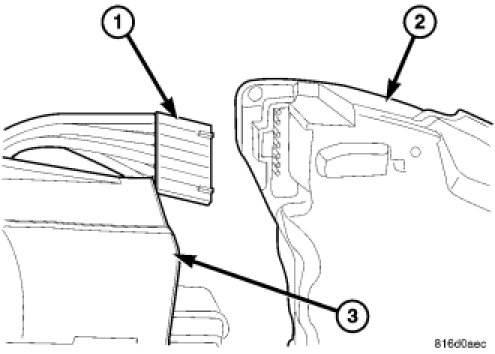

1. Position the right multi-function switch (2) close enough to the mounting bracket (3) integral to the right side of the clockspring to reconnect the jumper wire harness connector (1) to the connector receptacle on the inboard side of the switch housing.
2. Align the slide tabs on the switch housing with the channel formations integral to the clockspring mounting bracket, then slide the switch into the bracket until it is firmly seated.

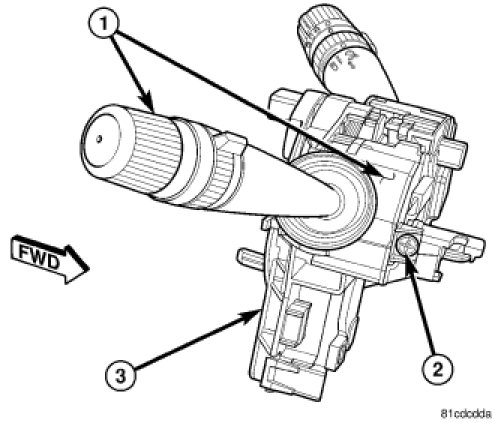

3. Install and tighten the screw (2) that secures the mounting tab on the back of the right multi-function switch (1) to the mounting bracket on the clockspring (3). Tighten the screw to 1 Nm (10 in. lbs.).
4. Reinstall the upper and lower shrouds onto the steering column. Installation.
5. Reconnect the battery negative cable.
