2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Assembly
ASSEMBLY

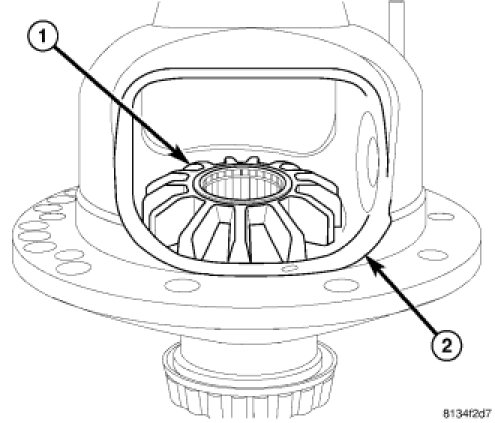

1. Install lower side gear (1) through differential window (2).

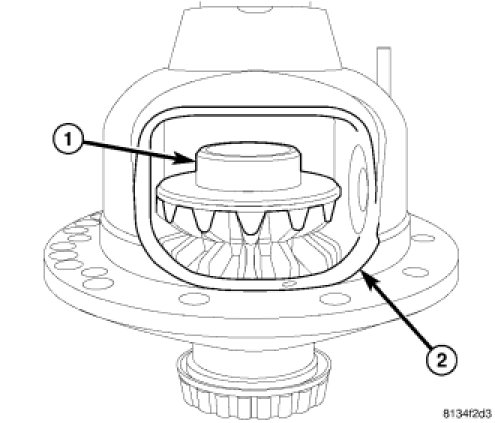

2. Install upper side gear (1) through differential window (2).

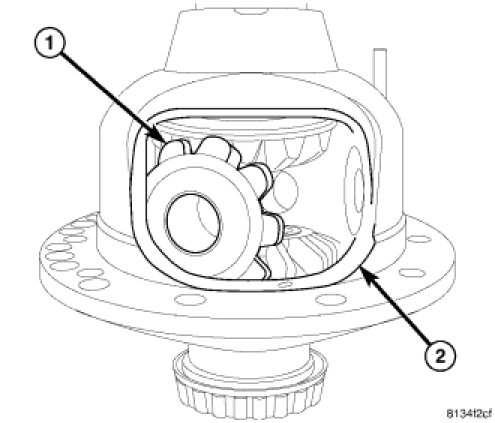

3. Install pinion gears (1) with washers into differential window (2) and rotate gears till aligned with pinion shaft hole.

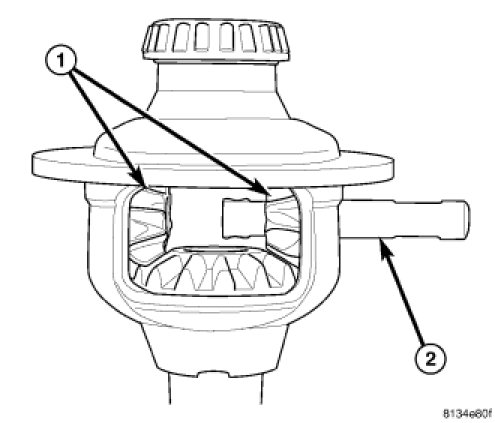

4. Install pinion gears (1) mate shaft (2) into the case.

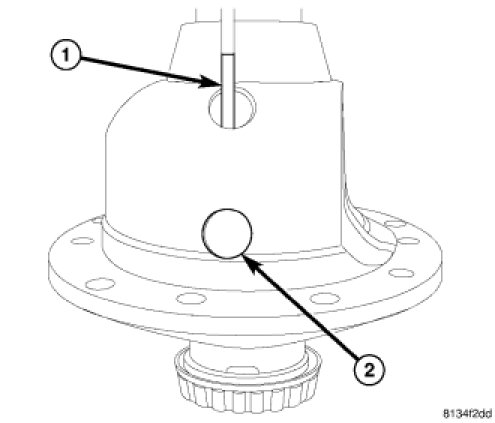

5. Install pinion mate shaft lock pin (1) with a hammer and punch, into the differential case and mate shaft (2).

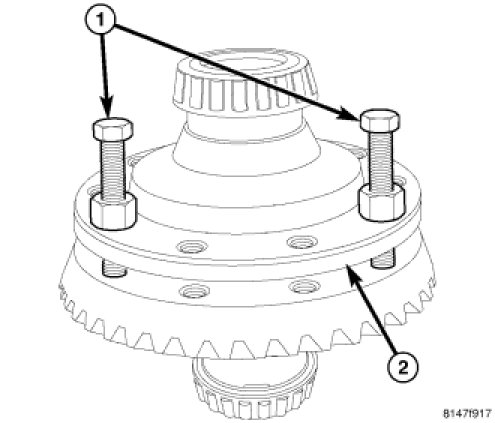

6. Install left hand thread ring gear Installer Bolts 9533 (1) through differential (2) and into ring gear. Tighten nuts on installer bolts evenly and draw ring gear onto differential case.
7. Remove installer bolts and install new ring gear bolts and tighten to 102 Nm (75 ft. lbs.).
