2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Disassembly
DISASSEMBLY

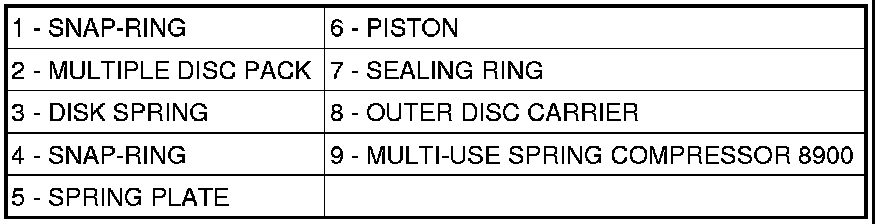

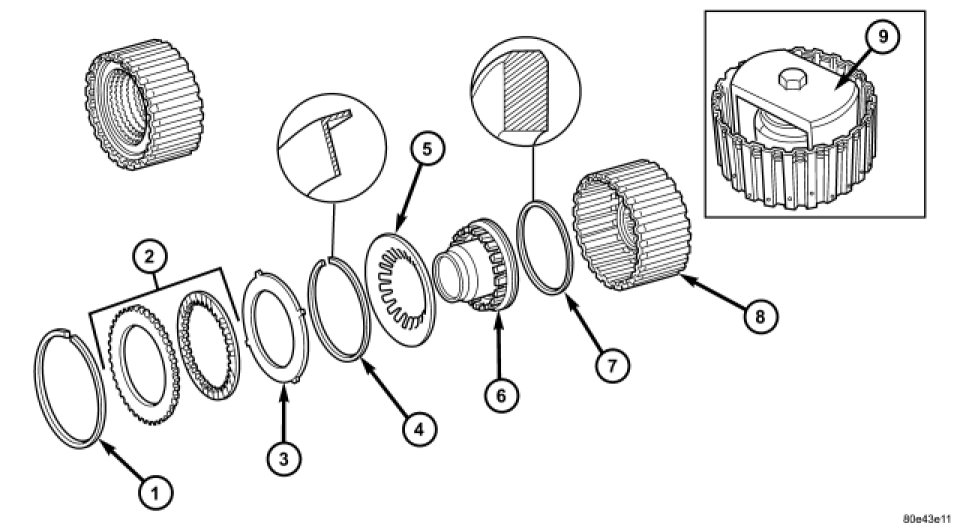

Input Clutch K3 Components
1. Remove snap-ring (1) from outer multiple-disc carrier.
2. Remove multiple-disc pack (2) and disk spring (3) from outer multiple-disc carrier. Note which clutch disc is removed just prior to the disc spring (3) for re-assembly. If the clutch discs are re-used, this disc must be returned to its original position on top of the spring plate.
3. Place Multi-use Spring Compressor 8900 (9) on the spring plate (5) and compress the spring until the snap-ring (4) is exposed.
4. Remove snap-ring (4).
5. Remove spring plate (5) and piston (6) from outer multiple-disc carrier.
