2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Starter Motor: Locations
Component ID: 559

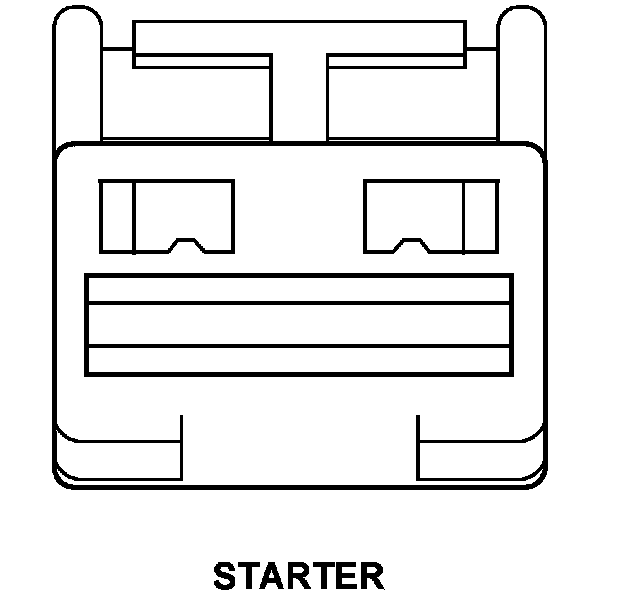

Component : STARTER
Connector:
Name : STARTER
Color :
# of pins : 1
Pin Circuit Description
1 T750 12YL/GY ENGINE STARTER MOTOR RELAY OUTPUT
Component Location - 14
Component Location - 12

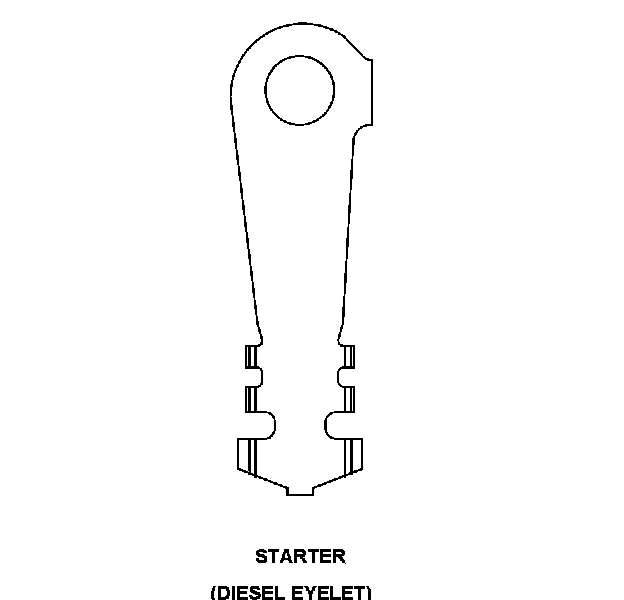

Connector:
Name : STARTER
Color :
# of pins : 1
Qualifier : (DIESEL EYELET)
Pin Circuit Description
1 A11 8BR/RD FUSED B(+)
Pin Circuit Description
1 A8 6RD B(+)
Component Location - 14
Component Location - 12

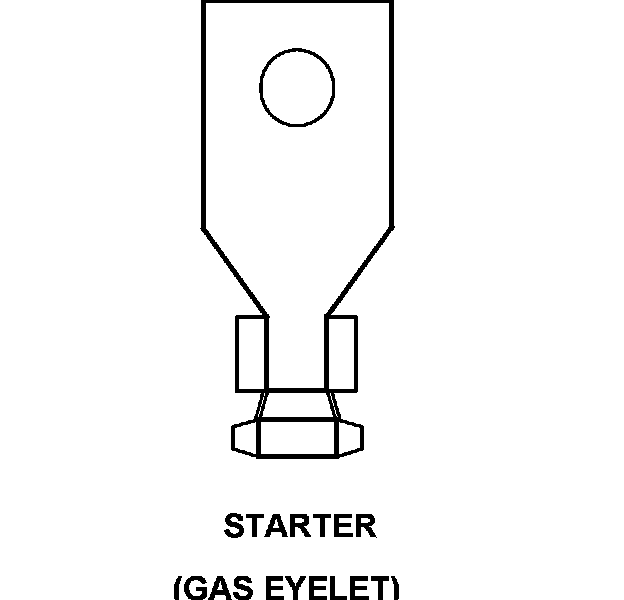

Connector:
Name : STARTER
Color :
# of pins : 1
Qualifier : (GAS EYELET)
Pin Circuit Description
1 A11 10BR/RD FUSED B(+)
Pin Circuit Description
1 A8 6RD B(+)
Component Location - 14
Component Location - 12
