2008 Jeep Commander 4WD V6-3.7L
Keyless Starting System: Diagrams
2008 Jeep Commander 4WD V6-3.7LSECTION Diagrams
Component ID: 255

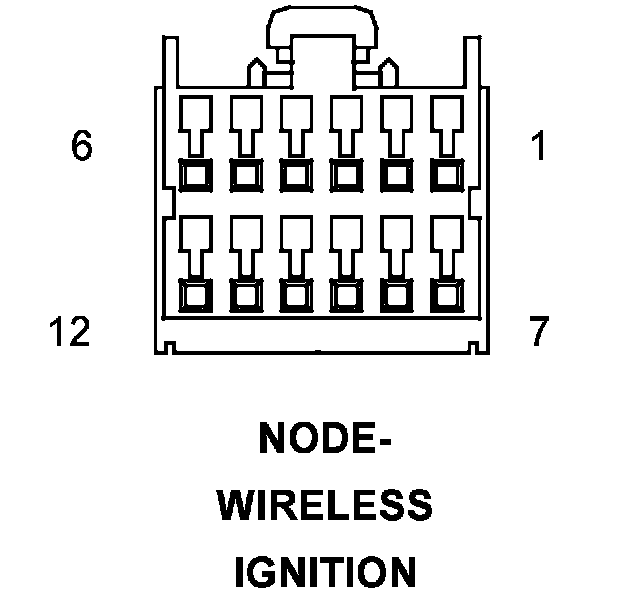

Component : NODE-WIRELESS IGNITION
Connector:
Name : NODE-WIRELESS IGNITION
Color :
# of pins : 12
Pin Circuit Description
1 A106 18LB/RD FUSED B(+)
2 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
3 F20 20PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
4 Z18 20BK/LB GROUND
5 D65 20WT/LG CAN C BUS (+)
6 D64 20WT/LB CAN C BUS (-)
7 K321 20BR/YL BRAKE SWITCH SIGNAL
8 B15 20DG/WT BRAKE SWITCH NO. 1 SIGNAL
9 F892 20PK/LB IGNITION SWITCH OUTPUT (KEY-IN)
10 - -
11 - -
12 T824 20YL/DB TRS PARK SIGNAL
