2008 Jeep Commander 4WD V6-3.7L
Intake Manifold
2008 Jeep Commander 4WD V6-3.7LSECTION Intake Manifold
INTAKE MANIFOLD TORQUE AND SEQUENCE
Install intake manifold retaining bolts and tighten in sequence shown to 12 Nm (105 in. lbs.).

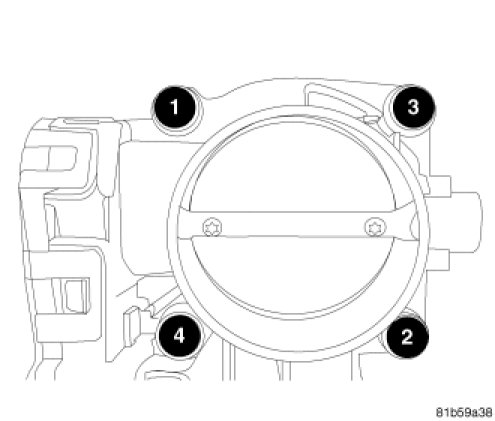

THROTTLE BODY TORQUE AND SEQUENCE
1. Install all throttle body mounting bolts (2) finger tight.
CAUTION: The throttle body mounting bolts MUST be torqued to specifications. DO NOT OVER TIGHTEN MOUNTING BOLTS. Over tightening can cause damage to the throttle body, throttle plate, gaskets, bolts and/or the intake manifold. Proper torque of the mounting bolts is critical to normal operation.
2. Obtain a torque wrench. Tighten mounting bolts (as shown) in a mandatory torque criss-cross pattern sequence to 7.5 Nm (65 in. lbs.).
Install intake manifold retaining bolts and tighten in sequence shown to 12 Nm (105 in. lbs.).
THROTTLE BODY TORQUE AND SEQUENCE
1. Install all throttle body mounting bolts (2) finger tight.
CAUTION: The throttle body mounting bolts MUST be torqued to specifications. DO NOT OVER TIGHTEN MOUNTING BOLTS. Over tightening can cause damage to the throttle body, throttle plate, gaskets, bolts and/or the intake manifold. Proper torque of the mounting bolts is critical to normal operation.
2. Obtain a torque wrench. Tighten mounting bolts (as shown) in a mandatory torque criss-cross pattern sequence to 7.5 Nm (65 in. lbs.).
