Crankshaft Main Bearing

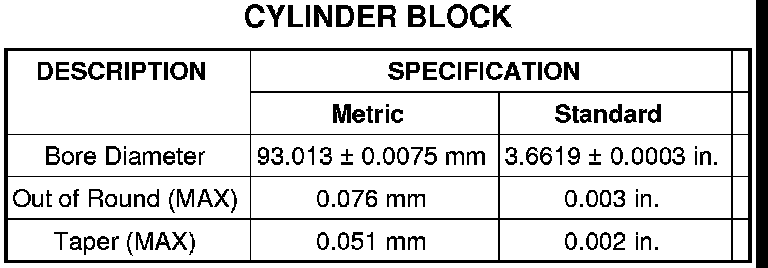

CYLINDER BLOCK

Cylinder Block:

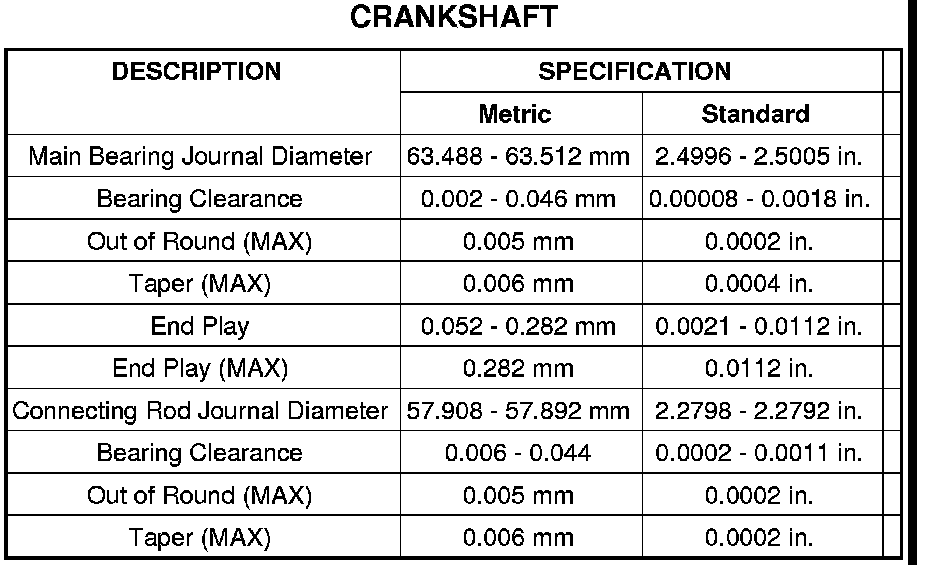

CRANKSHAFT

Crankshaft:

MAIN BEARING CAP TORQUE AND SEQUENCE





CAUTION: Main bearings are select fit. Refer to Crankshaft Main Bearings for proper bearing selections.

CAUTION: When installing crankshaft, use care not to damage bearing surfaces on the crankshaft.

NOTE: Apply sealant to the tone wheel retaining screws prior to installation.

1. Lubricate upper main bearing halves with clean engine oil.
2. Position crankshaft in cylinder block.

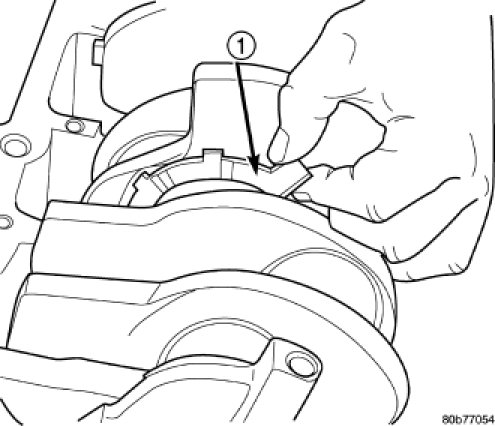

3. Install the thrust washers (1).




CAUTION: The bedplate to cylinder block mating surface must be coated with Mopar(R) Engine RTV sealant prior to installation. Failure to do so will cause severe oil leaks.

NOTE: Make sure that the bedplate and cylinder block sealing surfaces are clean and free of oil or other contaminants. Contaminants on the sealing surfaces may cause main bearing distortion and/or oil leaks.

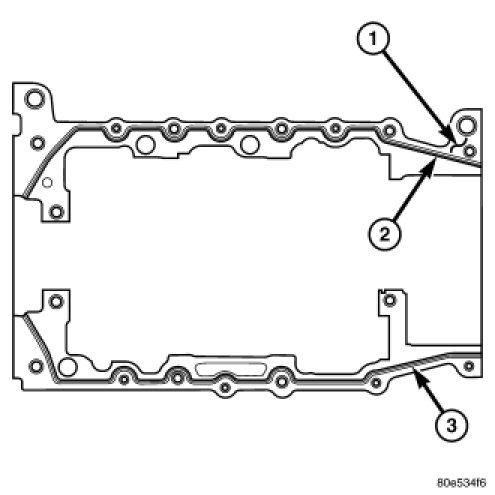

4. Apply a 2.5mm (0.100 inch) bead of Mopar(R) Engine RTV sealant to the cylinder block-to-bedplate mating surface (1) and (2).
5. Coat the crankshaft main bearing journals with clean engine oil and position the bedplate onto the cylinder block.

NOTE: Lubricate the bedplate retaining bolts with clean engine oil prior to installation.

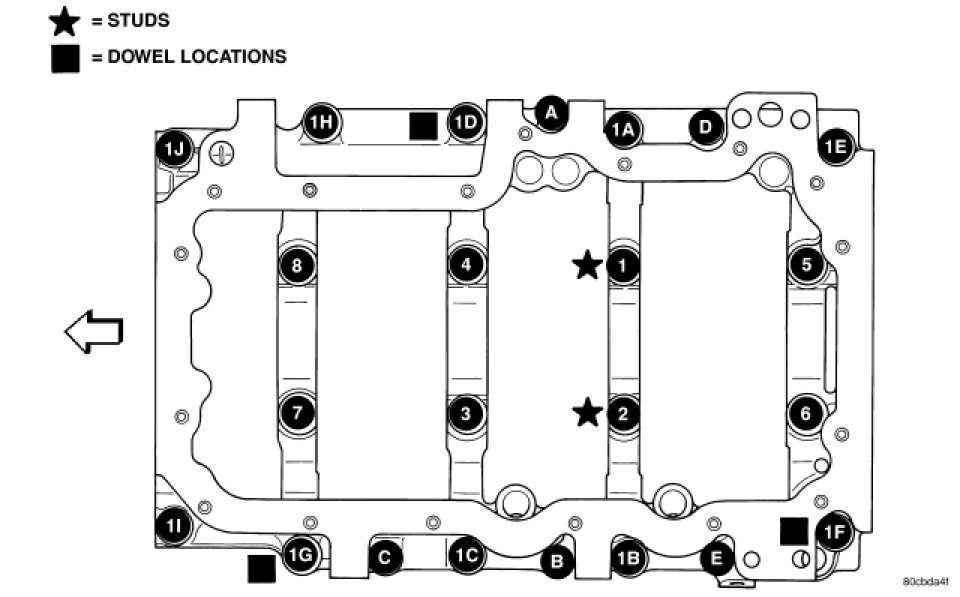

6. Install the bedplate retaining bolts, making sure to place the stud bolts in the correct location, Torque the bolts in the sequence shown.
- Hand tighten bolts 1D,1G and 1F until the bedplate contacts the block.
- Tighten bolts 1A - 1J to 54 Nm (40 ft. lbs.)
- Tighten bolts 1 - 8 to 7 Nm (62 in. lbs.)
- Turn bolts 1 - 8 an additional 90°.
- Tighten bolts A - E 27 Nm ( 20 ft. lbs.).


CRANKSHAFT MAIN BEARING SELECTION

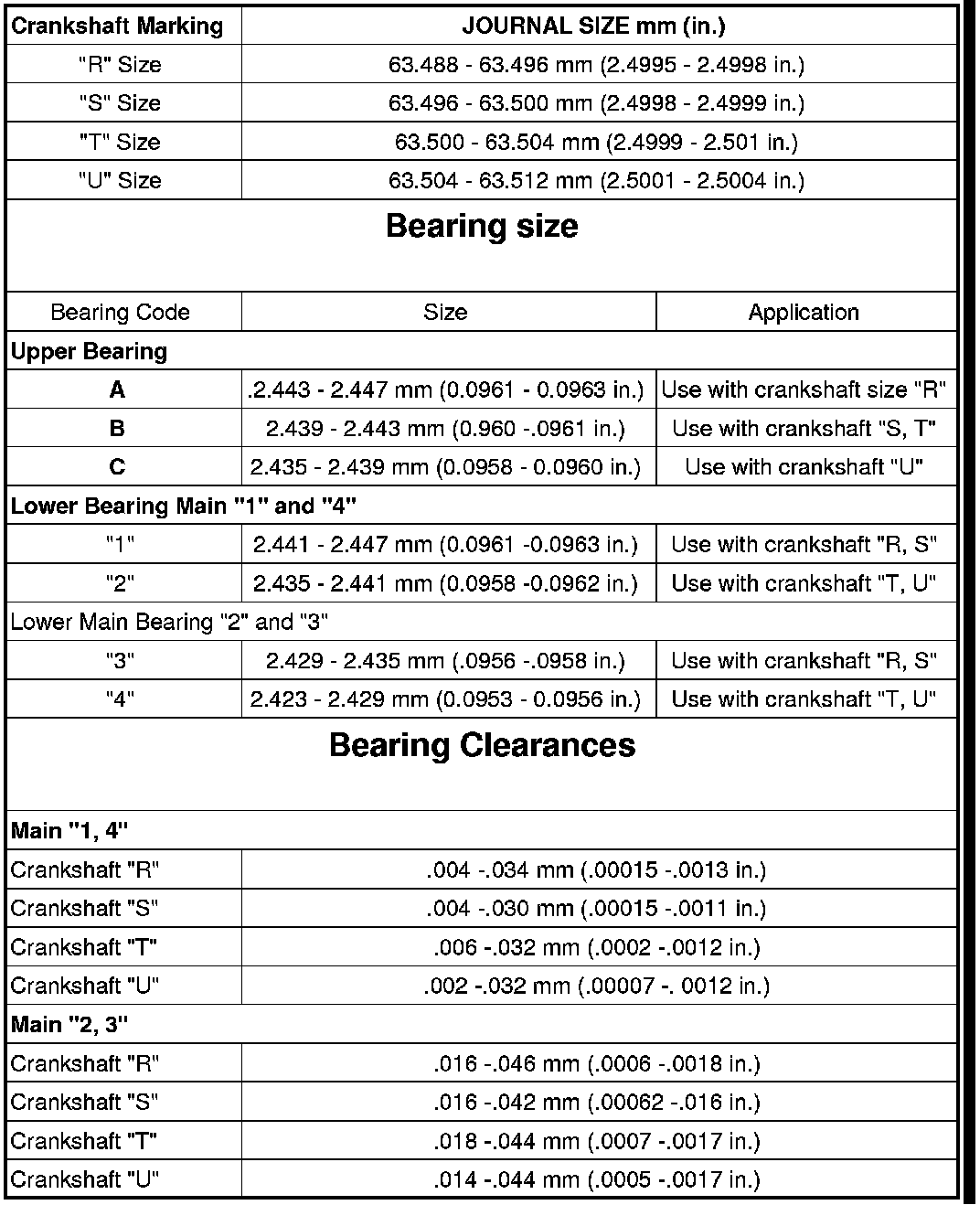

1. Service main bearings are available in four grades. The chart below identifies the four service grades available.
