2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Installation
INSTALLATION

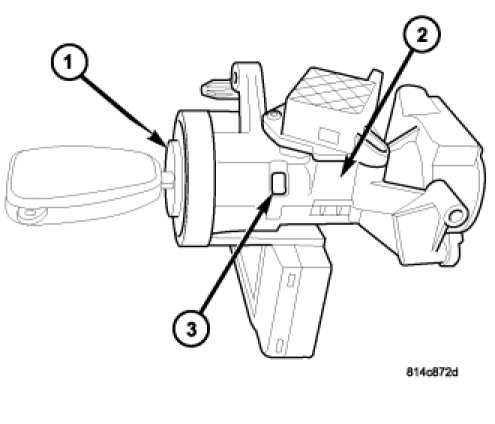

1. Install ignition key into lock cylinder (1). Rotate key to "ON" position (retaining tab on side of lock cylinder (3) can now be depressed).
2. The shaft at end of key lock cylinder aligns with socket within end of housing. To align socket with lock cylinder, ensure socket is in "ON" position.

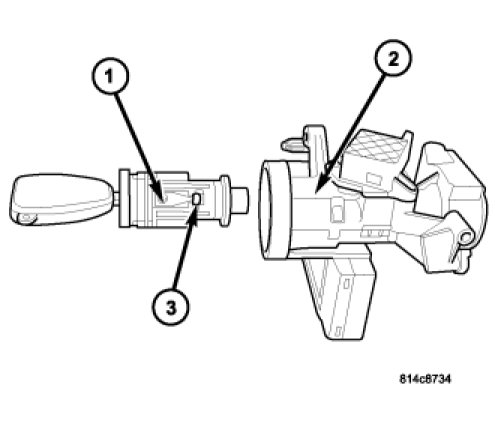

3. Position and align key lock cylinder with grooves in housing.
4. Slide lock cylinder into housing until release tab (3) sticks through opening at side of housing.

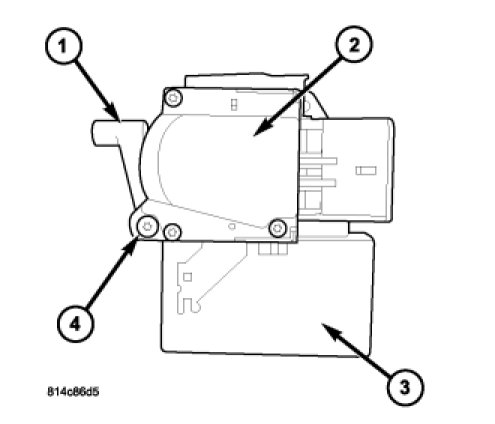

5. Install ignition switch (2) to switch housing (1) until it snaps into the two tabs. Install and tighten screw (4).

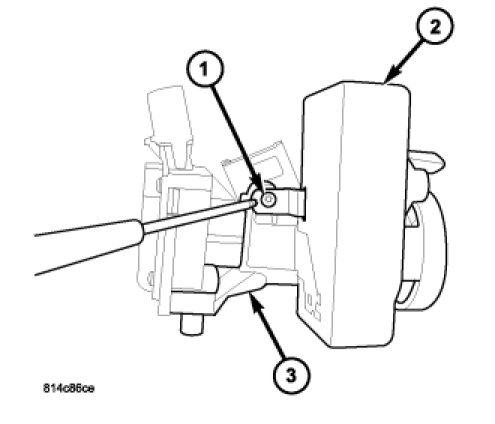

6. Install SKREEM unit (2) to switch housing (3) and install screw (1).

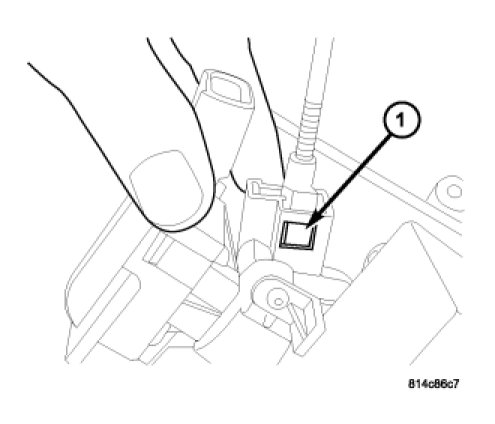

7. Position cable into assembly until tab (1) engages.

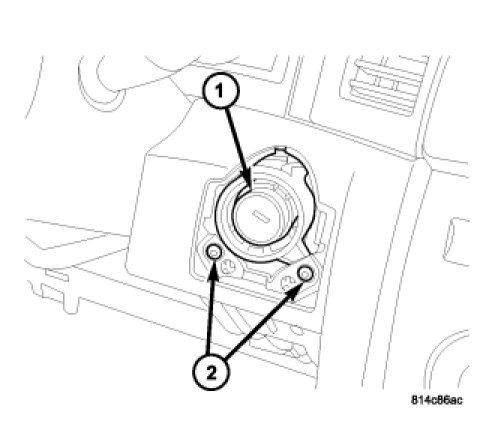

8. Install one key cylinder housing torx screw (1). Do not tighten (finger tight only).
9. Install two key cylinder housing torx screws (2). Now tighten all three housing mounting screws.

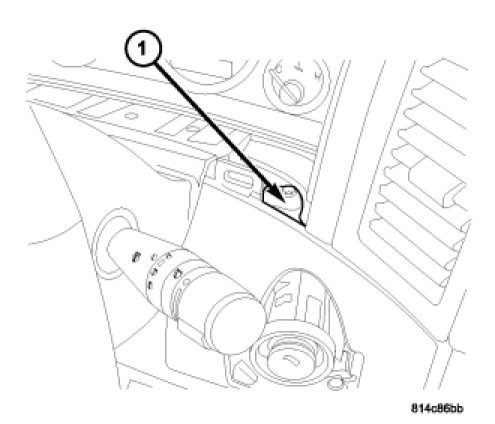

10. Install knee blocker Steering Column Opening Cover - Installation.
11. Install silencer pad.
12. Install both bezel. Snaps on Instrument Panel Center Bezel - Installation.
13. Connect negative battery cable.
