2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Locations
Component ID: 485
Component : SENSOR-CAMSHAFT POSITION

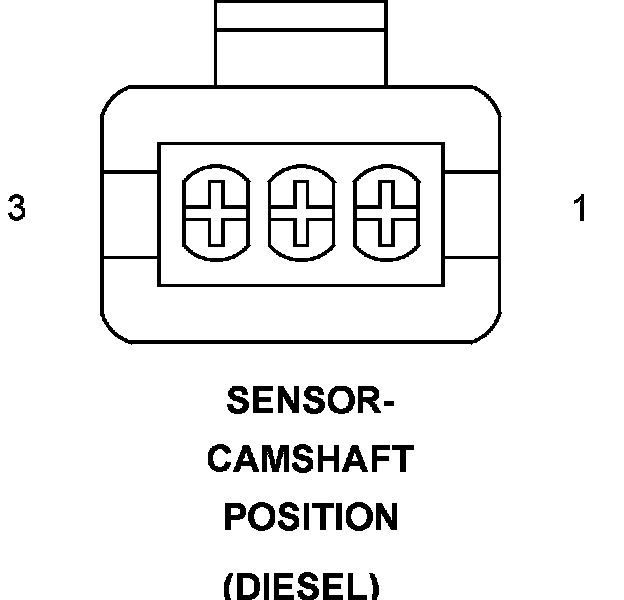

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color :
# of pins : 3
Qualifier : (DIESEL)
Pin Circuit Description
1 K944 20BR/DG CAMSHAFT POSITION SENSOR GROUND
2 K44 20YL/GY CAMSHAFT POSITION SENSOR SIGNAL
3 K844 20RD/VT CAMSHAFT POSITION SENSOR 5 VOLT SUPPLY
Component Location - 30
Component Location - 16
Component Location - 19
Component Location - 24

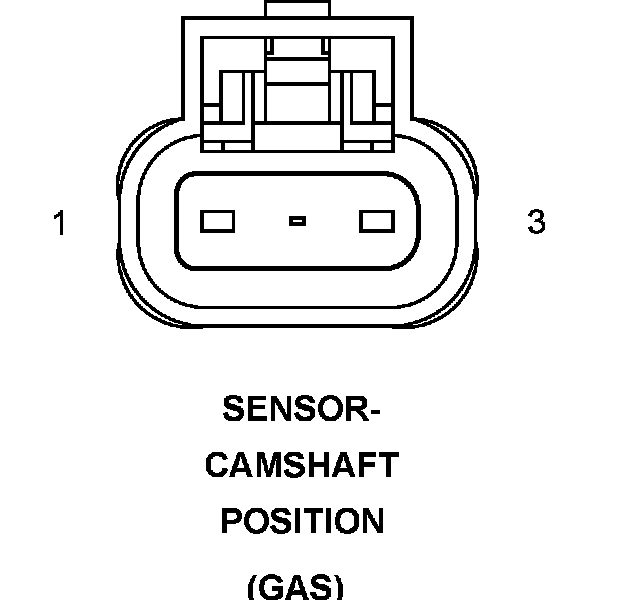

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : GRAY
# of pins : 3
Qualifier : (GAS)
Pin Circuit Description
1 F856 20YL/PK 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K44 20GY/DB CMP SIGNAL
3 K44 20DB/GY CMP SIGNAL
Component Location - 30
Component Location - 16
Component Location - 19
Component Location - 24
