2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Installation
INSTALLATION
NOTE: If installing a new service part, remove the plastic cover from the original module and install it on the new one.

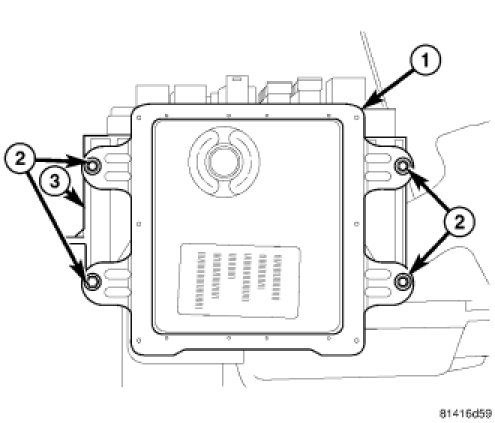

1. Connect the Integrated Power Module (IPM) (3) to the Front Control Module (FCM) (1) by lining up the electrical connector and pushing the two together.
2. Install the four fasteners (2) securing the FCM (1) to the IPM (3).
3. Install the IPM, Installation.
4. Connect the battery negative cable.
