2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE

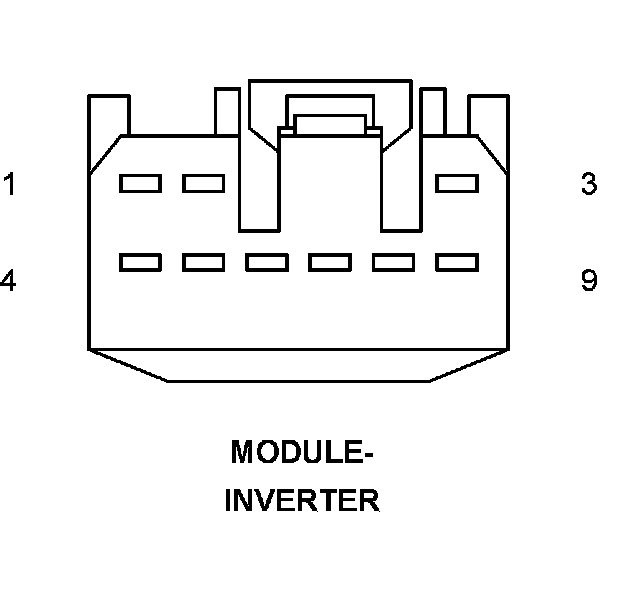

Module-Inverter
Component ID: 226
Component : MODULE-INVERTER
Connector:
Name : MODULE-INVERTER
Color :
# of pins : 9
Pin Circuit Description
1 A998 14RD FUSED B (+)
2 P806 20LG/WT INVERTER STATUS INDICATOR DRIVER
3 P801 18LG 110 VOLT AC LINE 1
4 Z917 14BK/WT GROUND
5 P807 20LG/LB INVERTER SWITCH SIGNAL
6 - -
7 - -
8 P802 18LG/OR 110 VOLT AC LINE 2
9 - -
