REMOVAL

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.

1. Disconnect and isolate the battery negative cable.

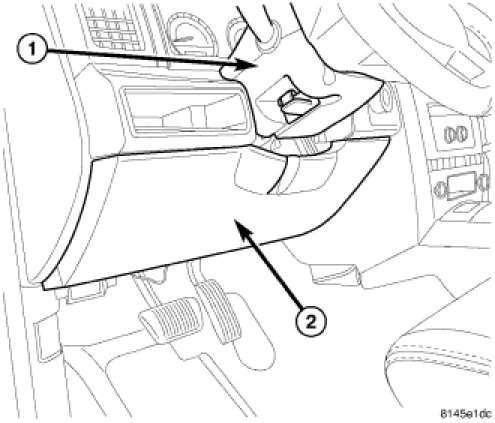

2. Remove the steering column opening cover (2). This is accomplished by pulling outward on the upper edge of the cover to disengage the retaining clips and removing the screw at the bottom of the cover.

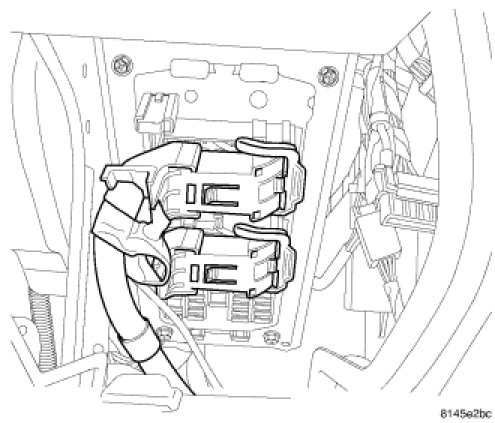

3. Disconnect the two bottom side Junction Block (JB) connectors.

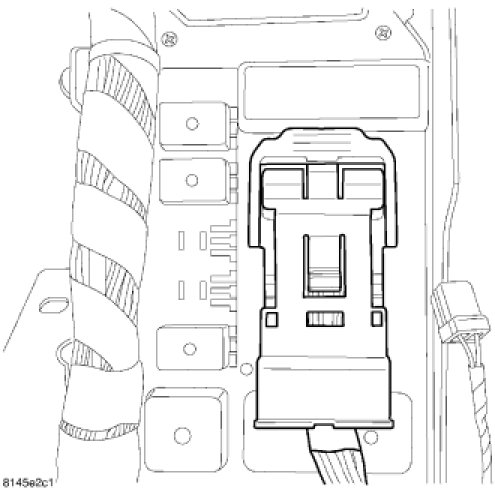

4. Reach behind the JB to disconnect the top side JB connector.

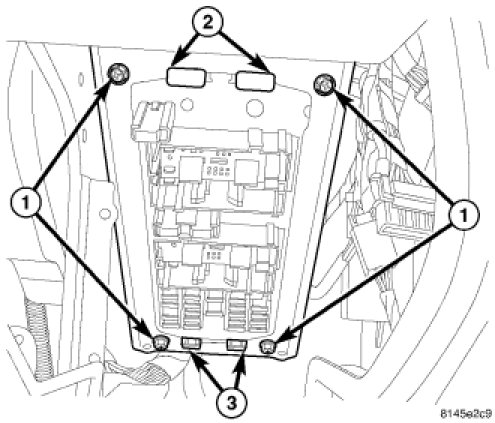

5. Remove the screws (1) that secure the JB to the mounting bracket.
6. Disengage the two snap clips (2) that secure the top of the JB to the mounting bracket. Push the top of the junction block out of the top of the bracket and pull it upward to disengage the lower retaining tabs (3).
7. Remove the JB from the vehicle by lowering out of the opening at the bottom of the instrument panel.
