2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Connector Location Index
DESCRIPTION
This section provides illustrations identifying connector, ground and splice locations in the vehicle. Connector, ground and splice indexes are provided. Use the wiring diagrams in each section for connector, ground and splice identification. Refer to the appropriate index for the proper figure number. For items that are not shown in this section N/S is placed in the Fig. column.
CONNECTORS

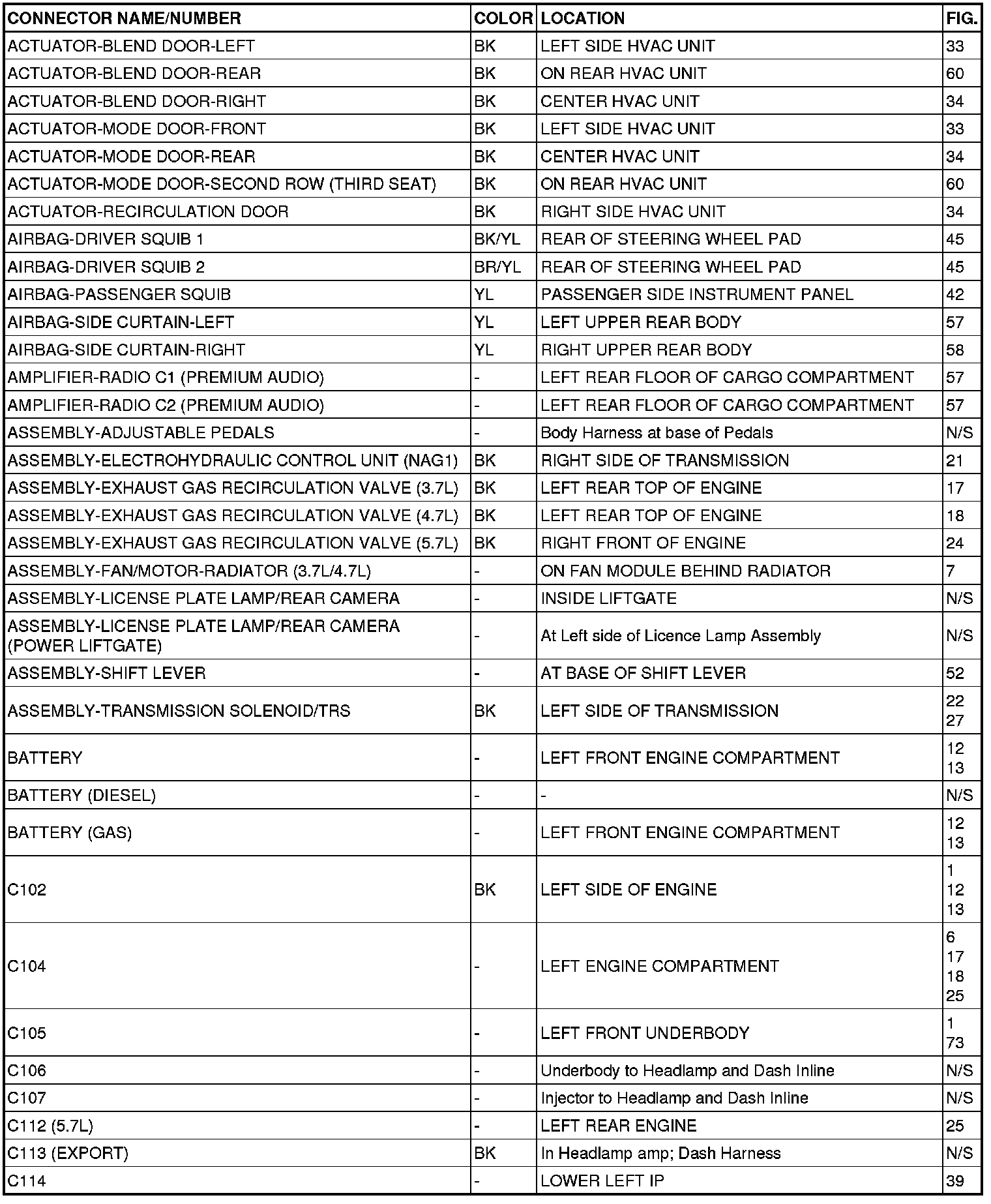

Ac-C114:

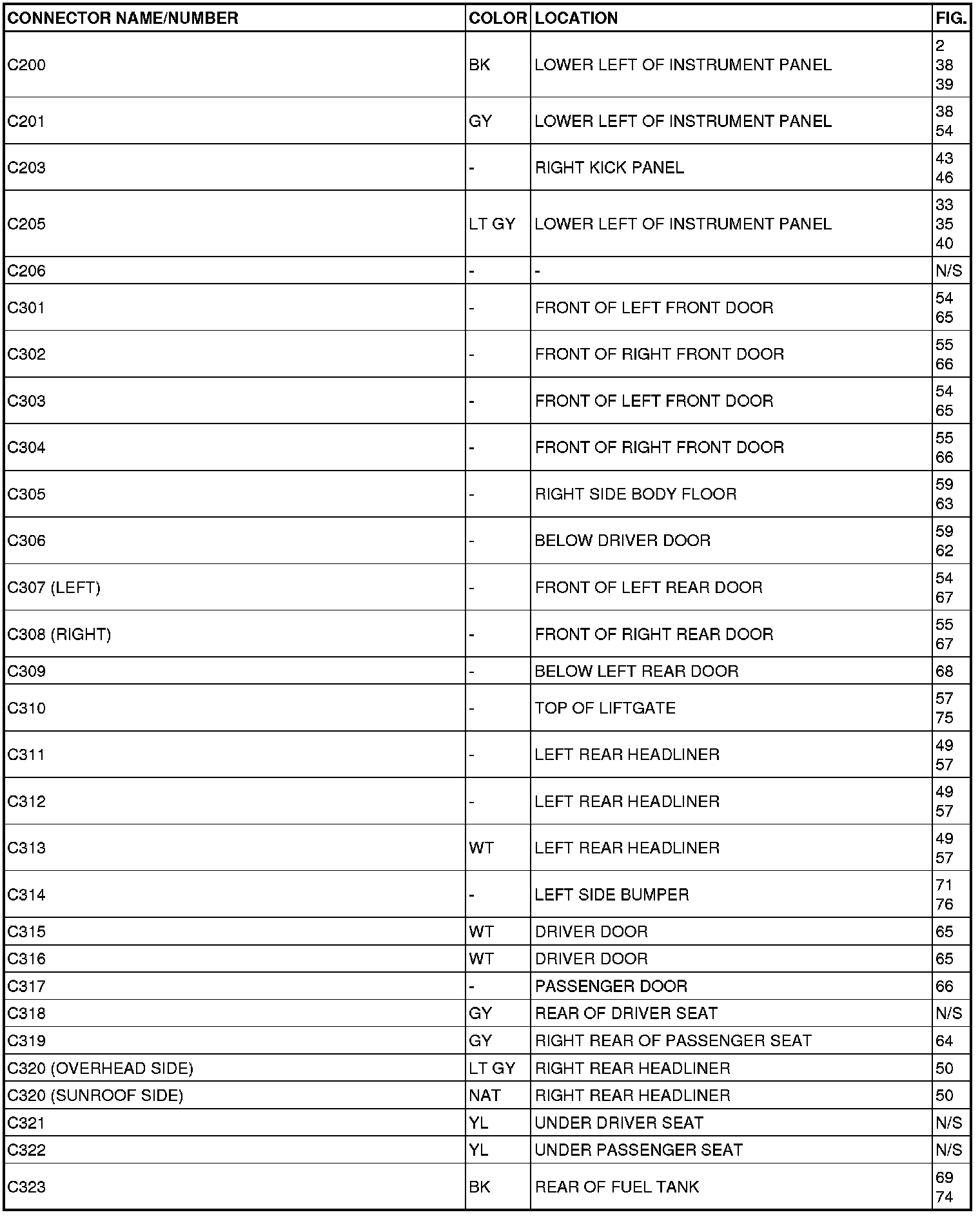

C200-C323:

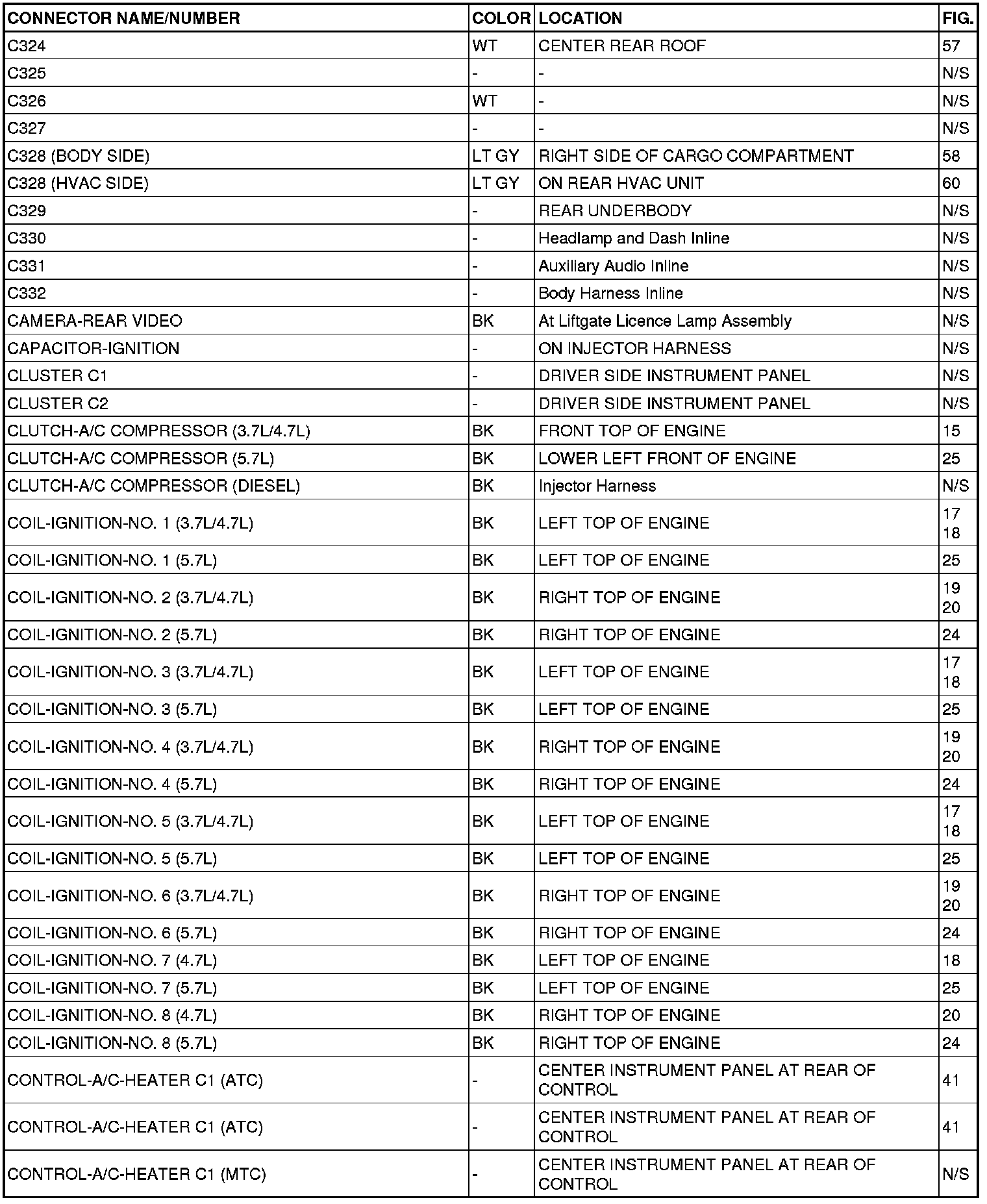

C324-Co:

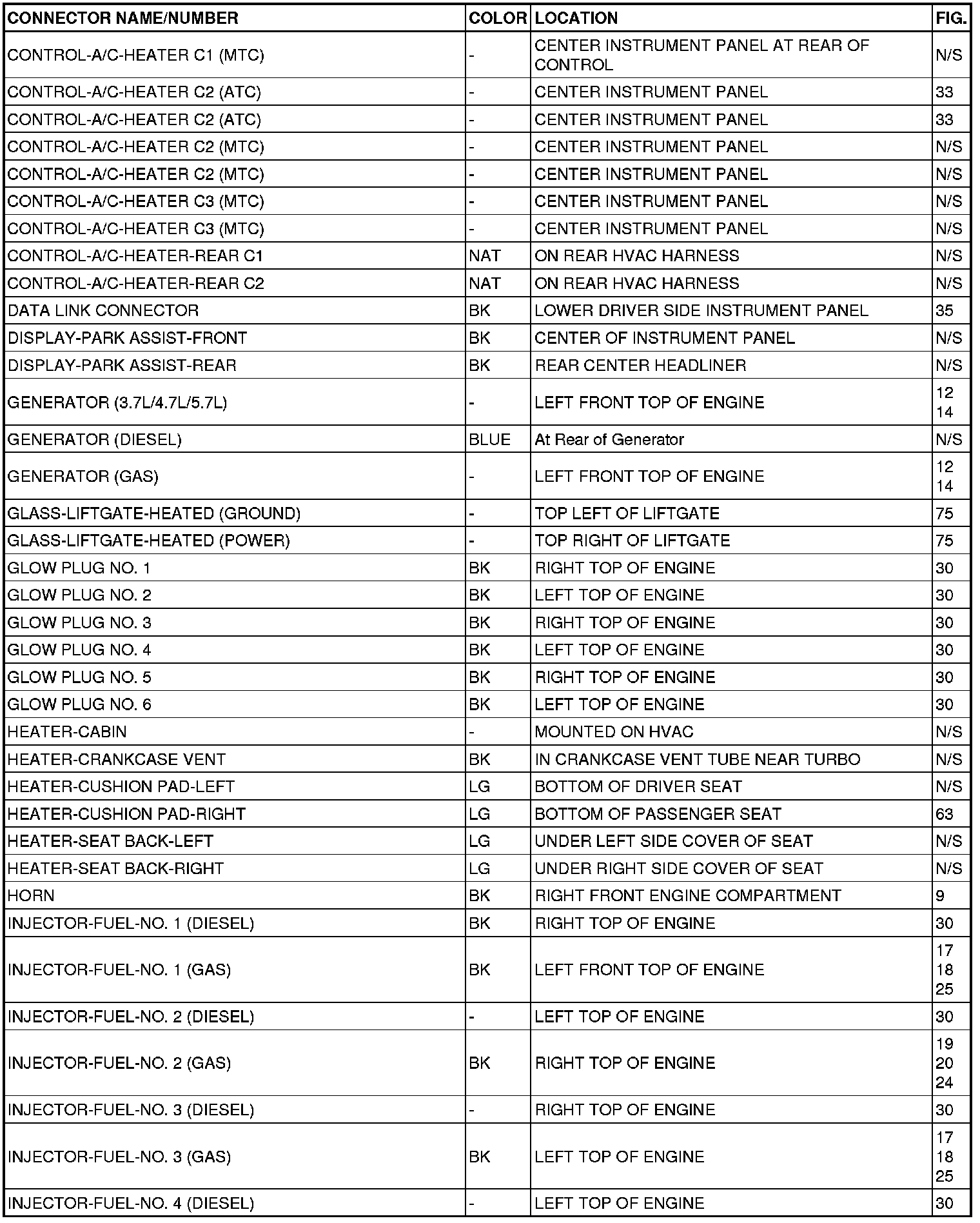

Co-In:

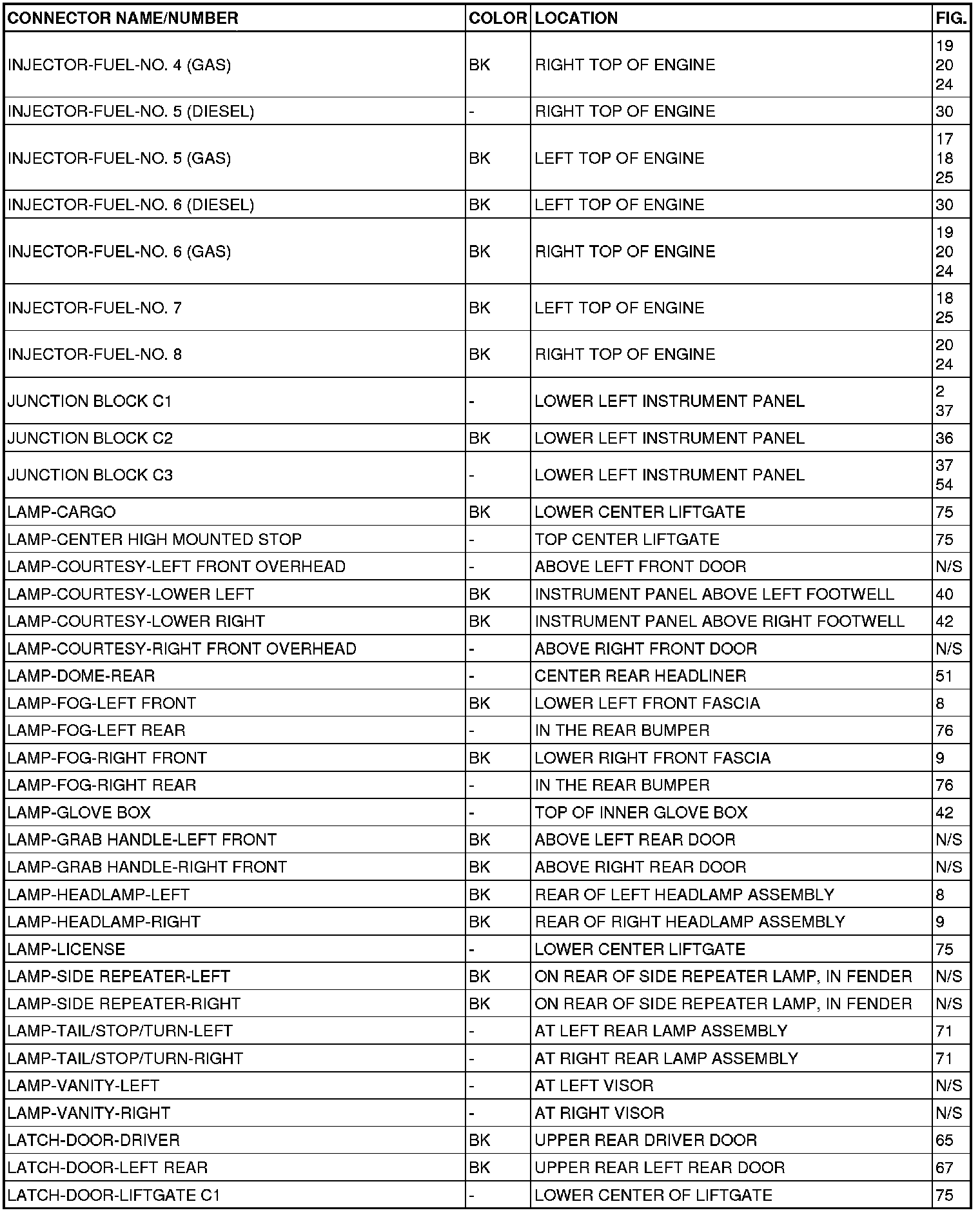

In-La:

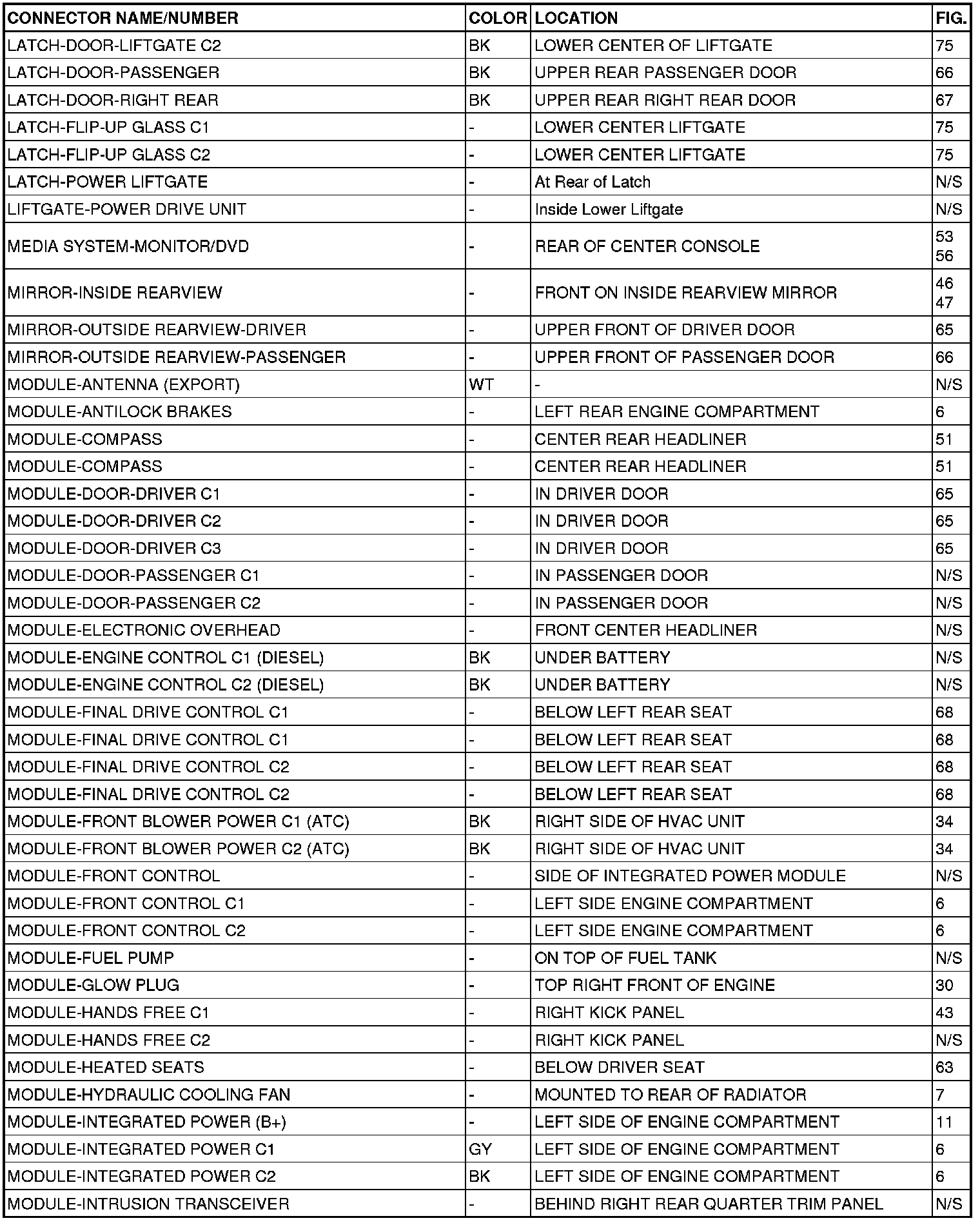

La-Mo:
Mo-Mo:

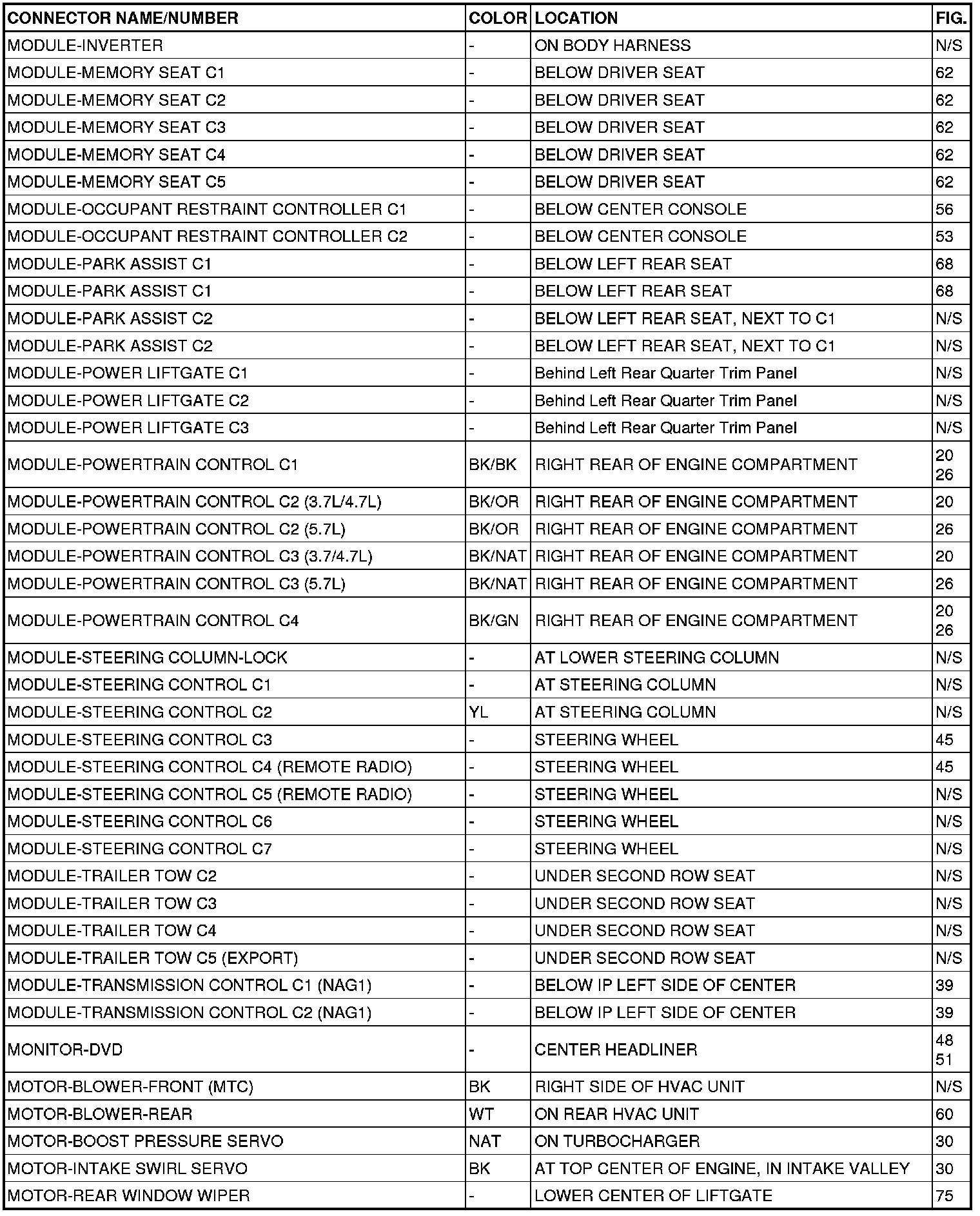

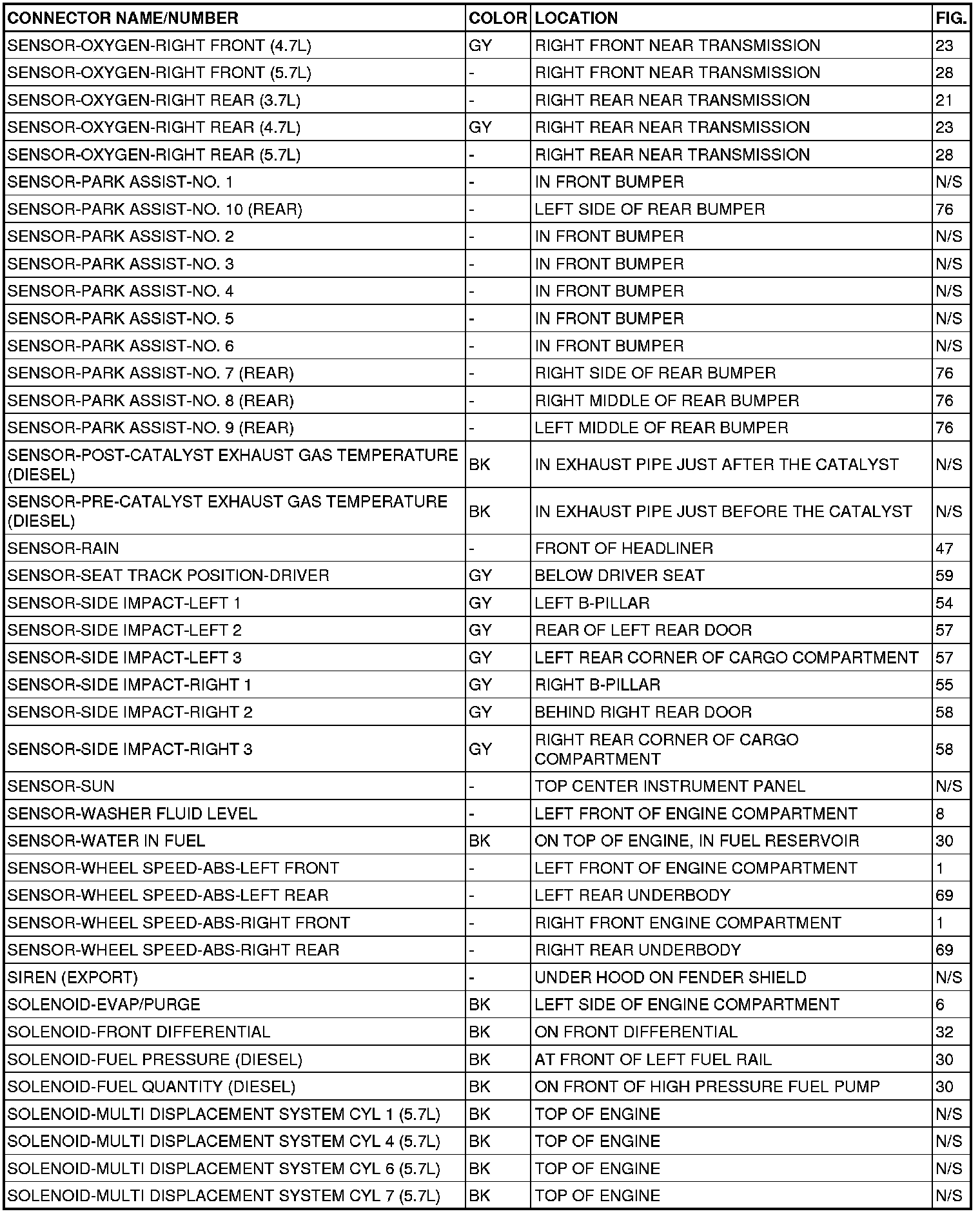

Mo-Se:

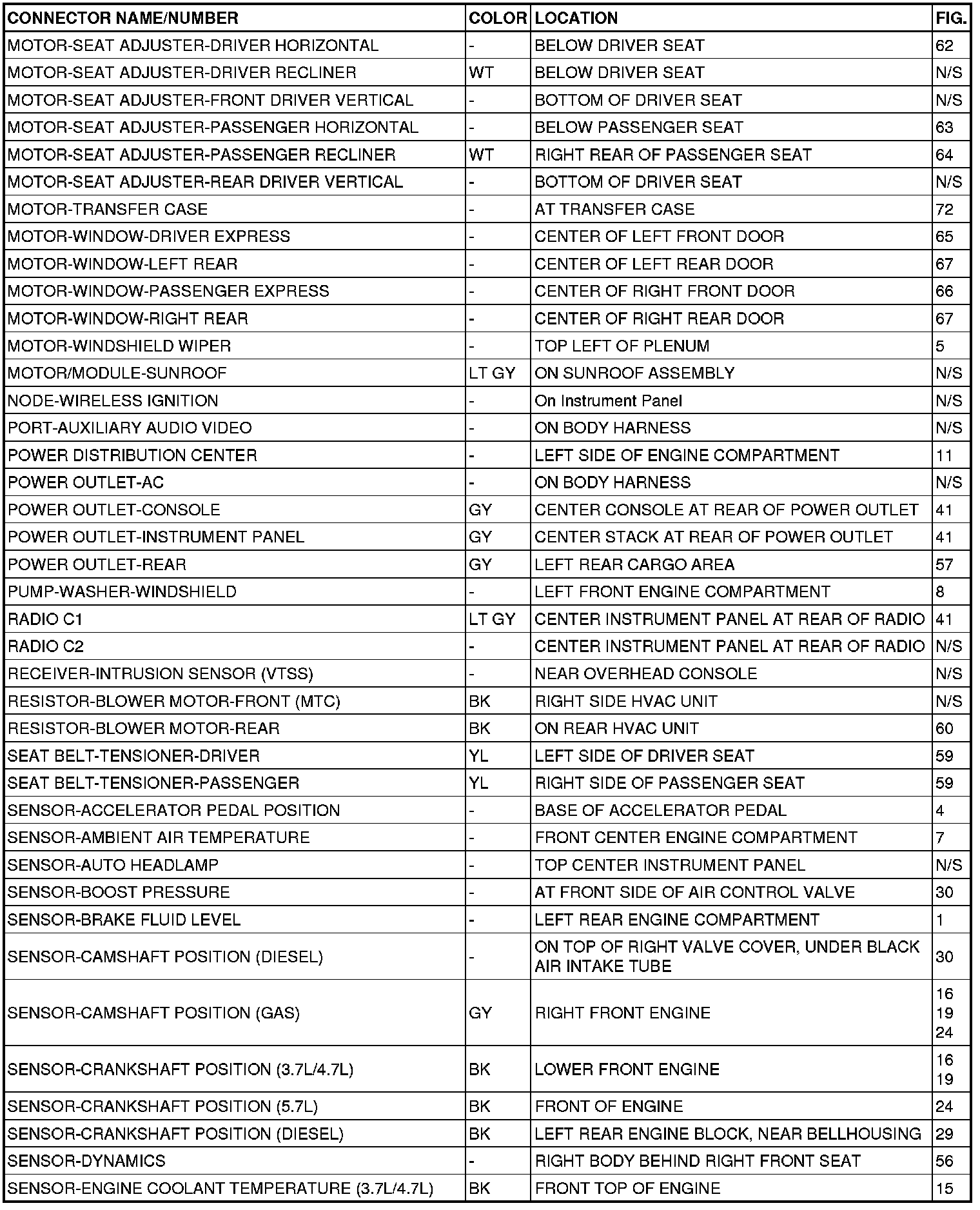

Se-Se:

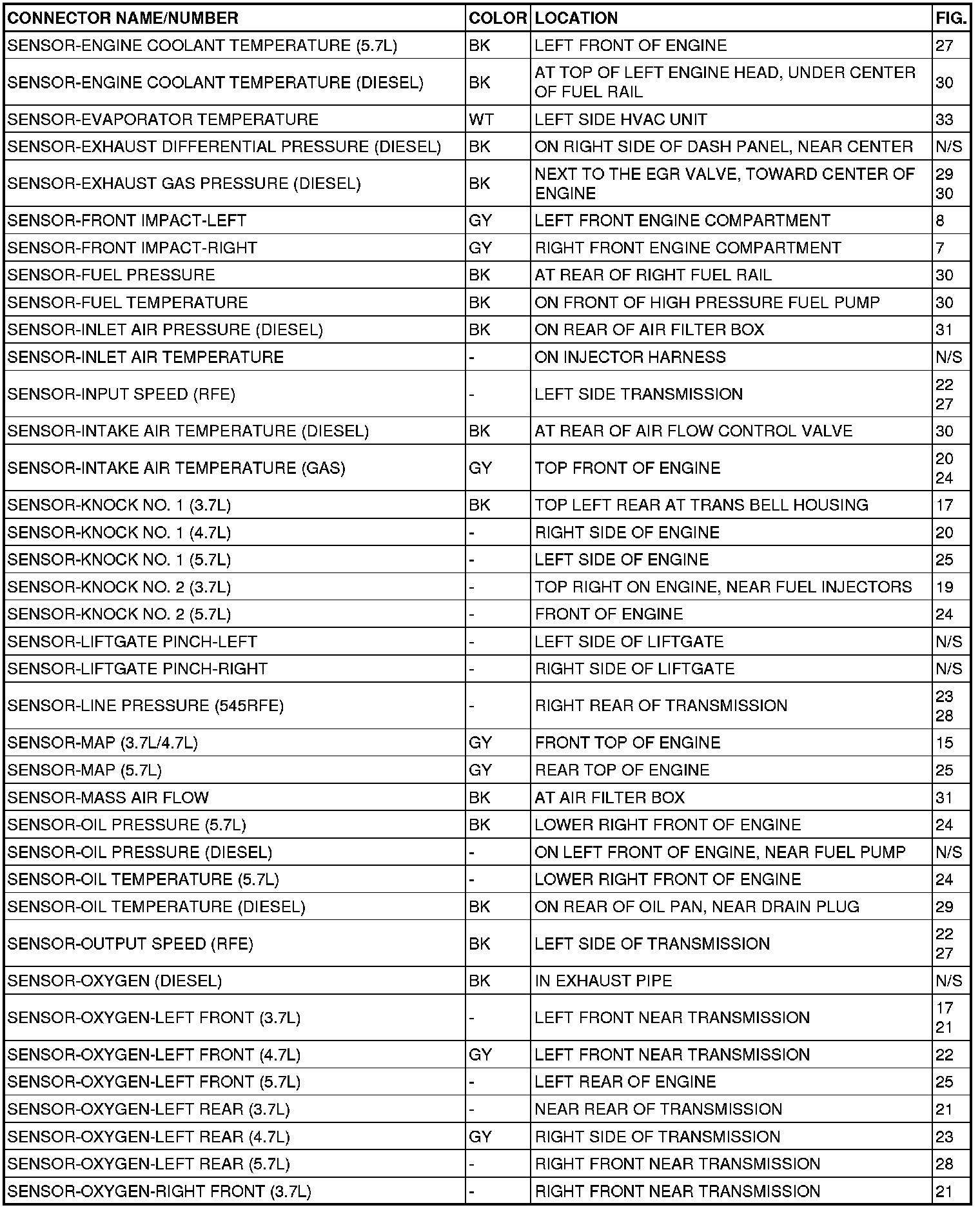

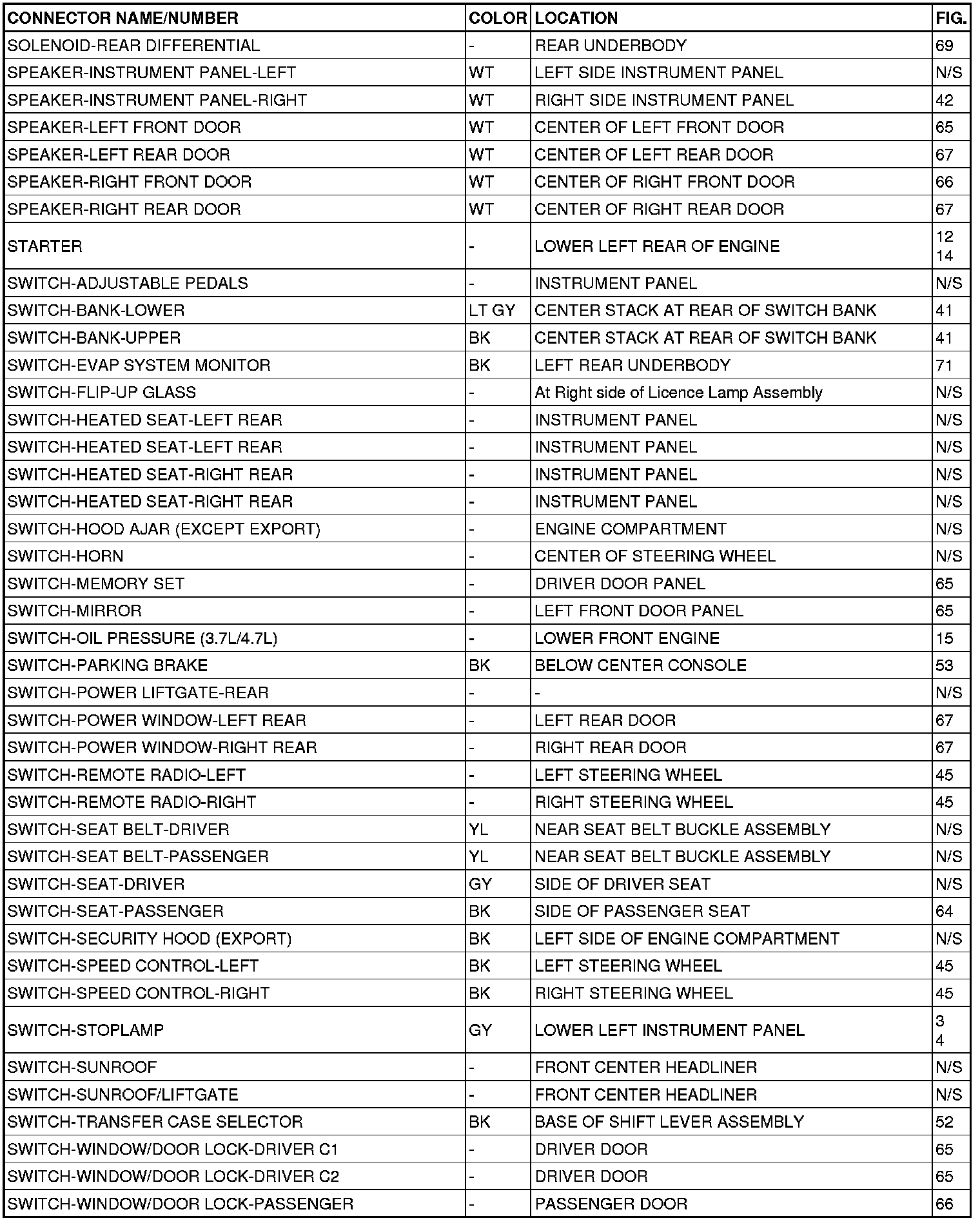

Se-So:
So-Sw:

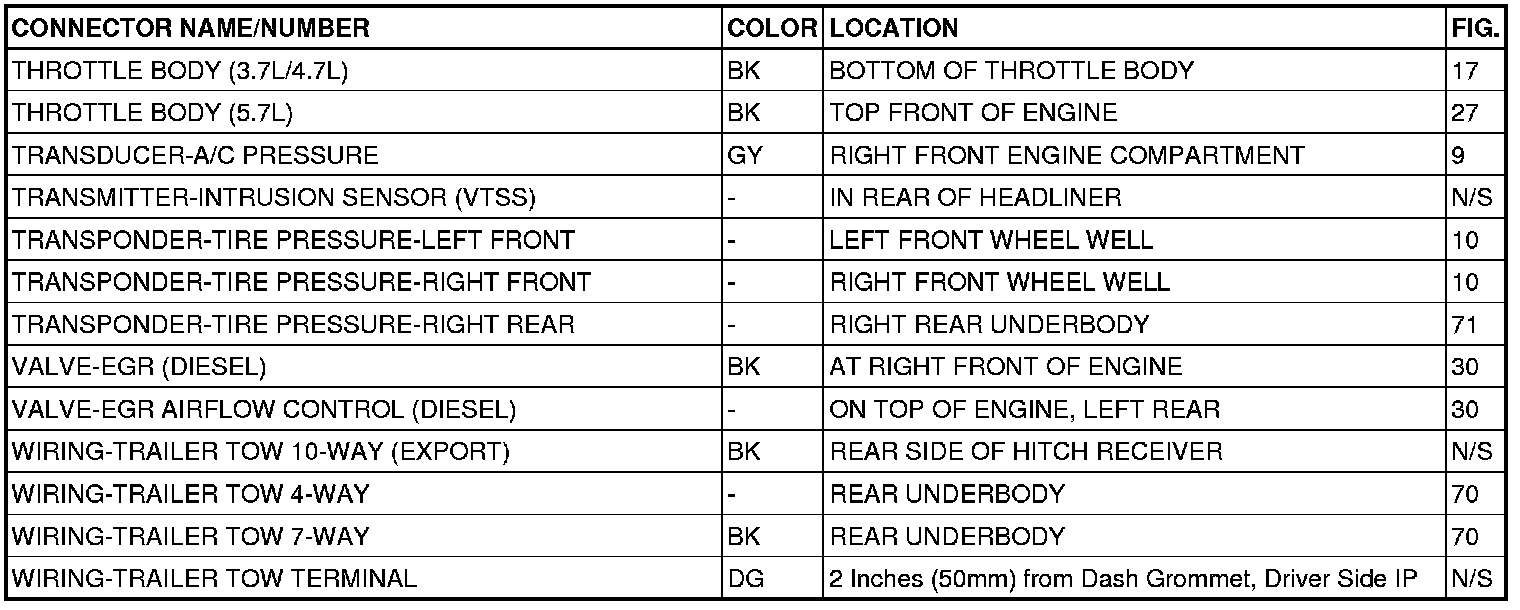

Th-Wi:
