2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Fog Lamp - Removal
LAMP
1. Disconnect and isolate the battery negative cable.
2. Raise and support the vehicle.
3. Drill out the plastic rivets that secure the forward end of the front wheelhouse splash shield to the front fender flare. Removal.
4. Pull the forward end of the front wheelhouse splash shield away from the front fender flare far enough to access the back of the front fog lamp housing on the back of the fascia.

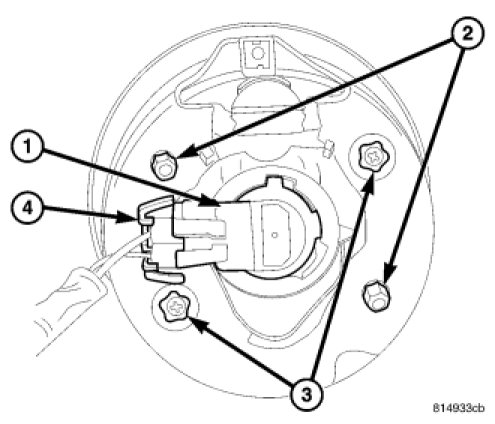

5. Disconnect the wire harness connector (4) from the fog lamp socket (1).
6. Remove the two screws (3) that secure the lamp to the back of the fascia.
7. Remove the lamp from the seat in the face of the front fascia.
