2008 Jeep Commander 4WD V6-3.7L
Front Blower Motor Power Module - Description
2008 Jeep Commander 4WD V6-3.7LSECTION Front Blower Motor Power Module - Description
DESCRIPTION
A blower motor power module is used on this model when it is equipped with the automatic temperature control (ATC) heating-A/C system. Models equipped with the manual temperature control (MTC) heating-A/C system use a blower motor resistor, instead of the blower motor power module .

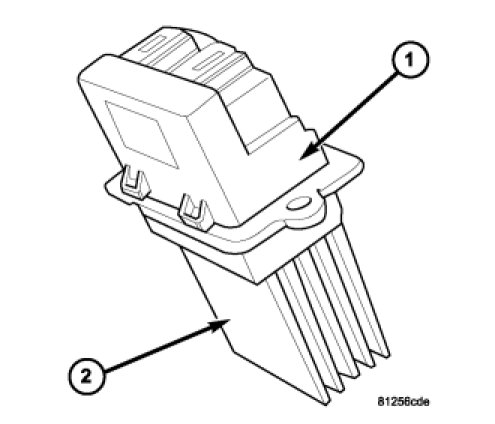

The blower motor power module is mounted to the rear of the HVAC housing, directly behind the glove box. The blower motor power module consists of a molded plastic mounting plate with two integral connector receptacles (1). Concealed behind the mounting plate is the power module electronic circuitry and a large finned heat sink (2).
The blower motor power module is accessed for service by removing the glove box.
