2008 Jeep Commander 4WD V6-3.7L
Relay-Wiper-Rear
2008 Jeep Commander 4WD V6-3.7LSECTION Relay-Wiper-Rear
Component ID: 300

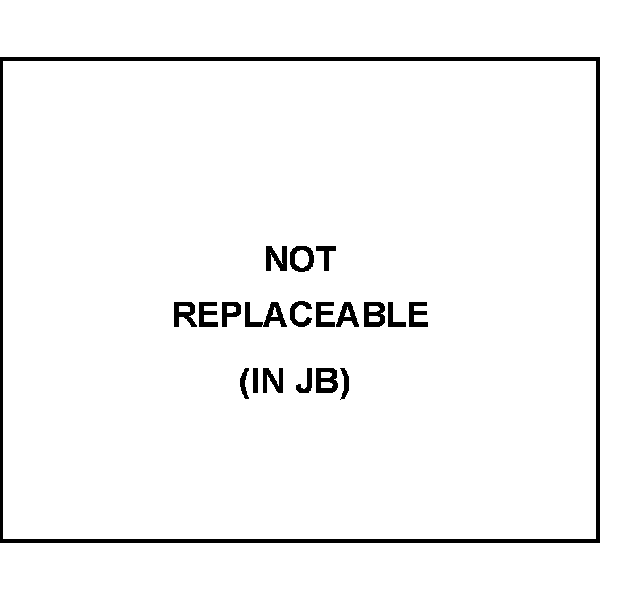

Component : RELAY-WIPER-REAR
Connector:
Name : RELAY-WIPER-REAR
Color :
# of pins : 0
30 INTERNAL FUSED B(+)
85 W12 20BR/OR REAR WIPER RELAY CONTROL
86 INTERNAL FUSED B(+)
87 A46 18RD/GY REAR WIPER RELAY OUTPUT
87A - -
