2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE

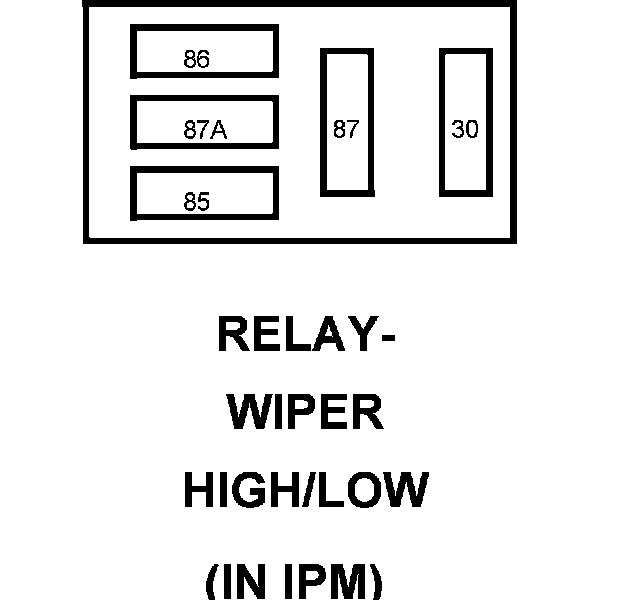

Relay-Wiper High/Low
Component ID: 298
Component : RELAY-WIPER HIGH/LOW
Connector:
Name : RELAY-WIPER HIGH/LOW
Color :
# of pins : 0
30 W6 16BR/LB WIPER ON/OFF RELAY OUTPUT
85 W2 20BR/LG HIGH/LOW WIPER RELAY CONTROL
86 A5 16RD/VT FUSED B(+)
87 W4 16BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
87A W3 16BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
