2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Motor-Windshield Wiper
Component ID: 254

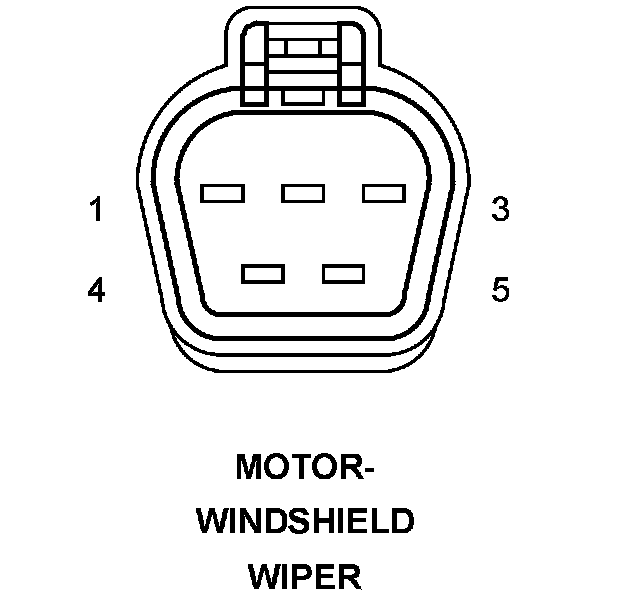

Component : MOTOR-WINDSHIELD WIPER
Connector:
Name : MOTOR-WINDSHIELD WIPER
Color :
# of pins : 5
Pin Circuit Description
1 W7 20BR/GY FRONT WIPER PARK SWITCH SENSE
Pin Circuit Description
1 W3 16BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
2 - -
3 W4 16BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
3 W7 20BR/GY FRONT WIPER PARK SWITCH SENSE
4 Z103 16BK/WT GROUND
4 W4 16BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
5 W3 16BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
5 Z103 16BK/WT GROUND

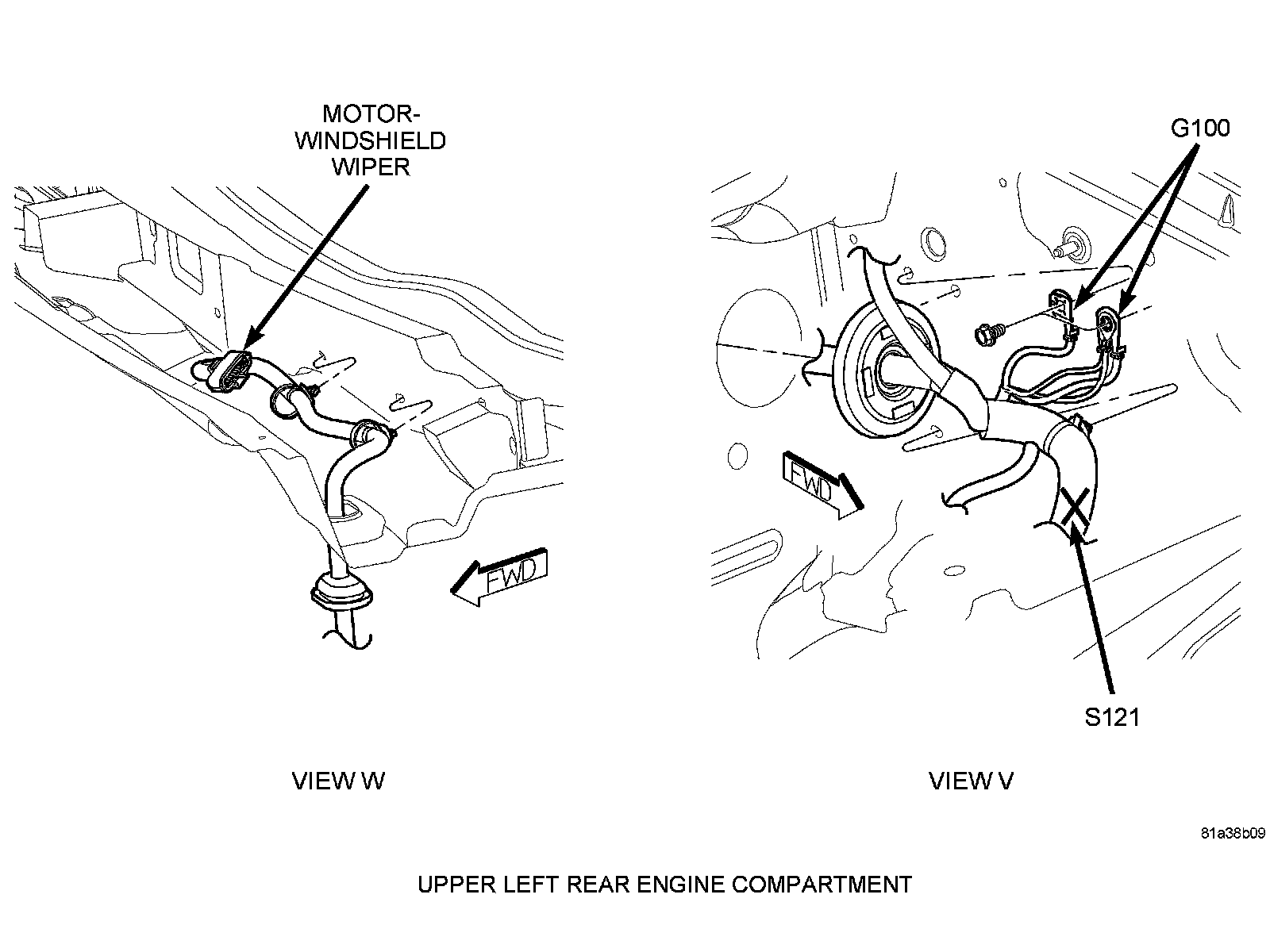

Component Location - 5
