2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Trunk / Liftgate Closer Module
Component ID: 201

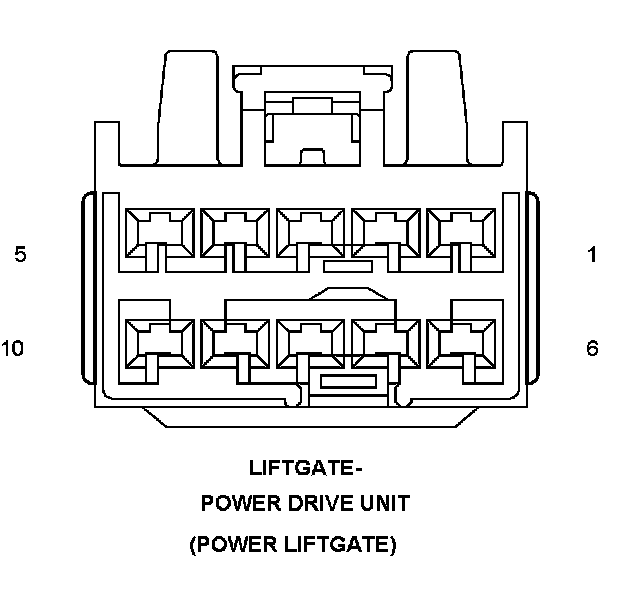

Component : LIFTGATE-POWER DRIVE UNIT
Connector:
Name : LIFTGATE-POWER DRIVE UNIT
Color :
# of pins : 10
Qualifier : (POWER LIFTGATE)
Pin Circuit Description
1 Q88 14TN/BR LIFTGATE OPEN DRIVER
2 Q203 20OR/TN POSITION SENSOR SUPPLY
3 Q901 20OR/VT LOGIC GROUND
4 Q201 18OR/LG LIFTGATE CLUTCH DRIVER
5 Q901 20OR/VT LOGIC GROUND
6 Q89 14TN/OR LIFTGATE CLOSE DRIVER
7 Q204 20OR/DG POSITION SENSOR SIGNAL 1
8 Q205 20OR/DB POSITION SENSOR SIGNAL 2
9 Z800 18BK GROUND
10 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
