2008 Jeep Commander 4WD V6-3.7L

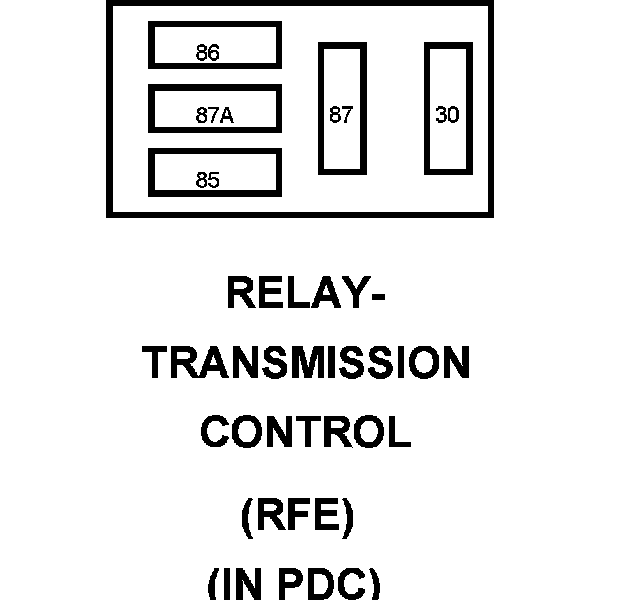

Relay-Transmission Control
2008 Jeep Commander 4WD V6-3.7LSECTION Relay-Transmission Control
Component ID: 297
Component : RELAY-TRANSMISSION CONTROL
Connector:
Name : RELAY-TRANSMISSION CONTROL
Color :
# of pins : 0
Qualifier : (RFE)
30 A917 18RD/DG FUSED B(+)
85 Z387 20BK GROUND
86 T15 20YL/BR TRANSMISSION CONTROL
87 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
87A - -
