2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Transfer Case Actuator
Component ID: 249

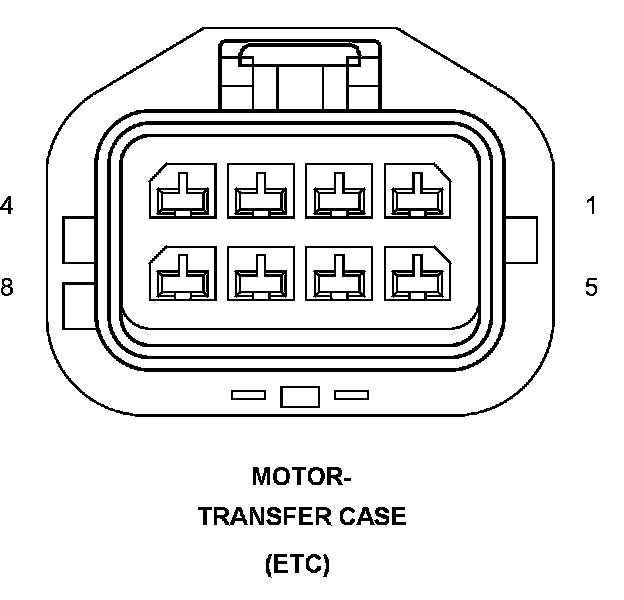

Component : MOTOR-TRANSFER CASE
Connector:
Name : MOTOR-TRANSFER CASE
Color :
# of pins : 8
Qualifier : (ETC)
Pin Circuit Description
1 K504 20BR DRIVETRAIN 5 VOLT SUPPLY
2 T313 20YL/LG MODE SENSOR SIGNAL
3 K594 20BR/LG DRIVETRAIN SENSOR RETURN
4 T315 14YL/BR SHIFT MOTOR CONTROL A
5 T316 14YL/GY SHIFT MOTOR CONTROL B
6 T301 20DG/YL SWITCHED BATTERY SOLENOID SUPPLY
7 T317 20YL/TN TRANSFER CASE MOTOR LOCK SIGNAL
8 - -

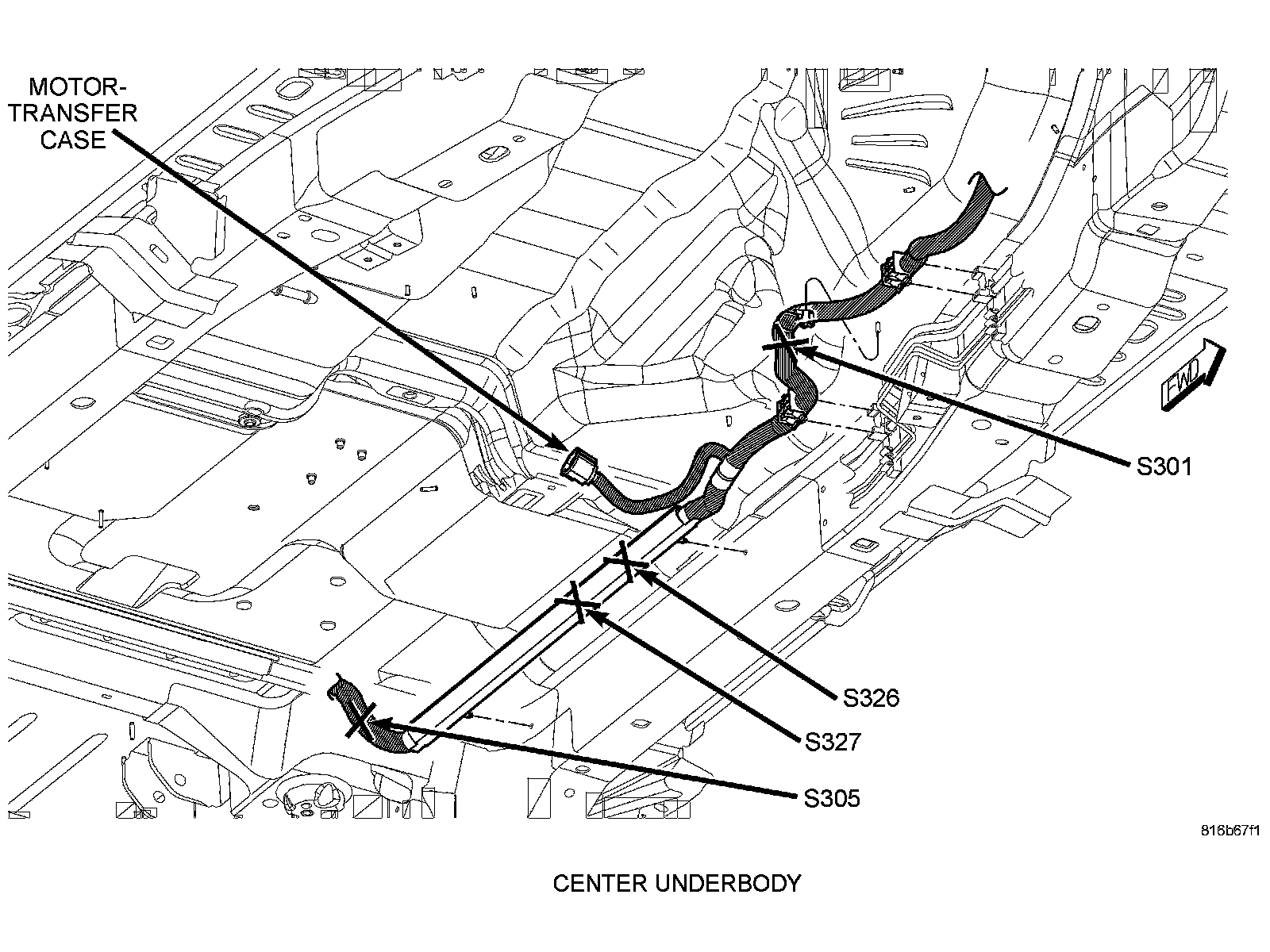

Component Location - 72
