2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE

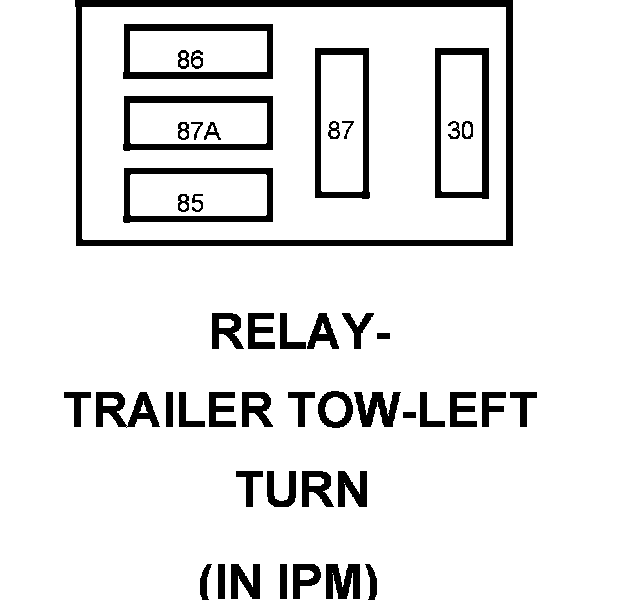

Relay-Trailer Tow-Left Turn
Component ID: 294
Component : RELAY-TRAILER TOW-LEFT TURN
Connector:
Name : RELAY-TRAILER TOW-LEFT TURN
Color :
# of pins : 0
30 A919 18RD FUSED B(+)
85 L655 20WT/OR LEFT TRAILER TOW BRAKE LAMP RELAY CONTROL
86 A919 18RD FUSED B(+)
87 L615 18WT/YL TRAILER TOW LEFT STOP/TURN SIGNAL
87A - -
