2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Transponder-Tire Pressure-Right Rear
Component ID: 598

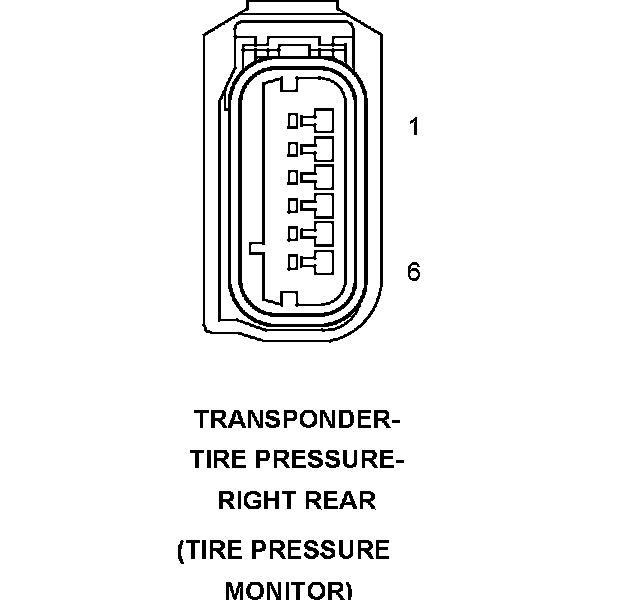

Component : TRANSPONDER-TIRE PRESSURE-RIGHT REAR
Connector:
Name : TRANSPONDER-TIRE PRESSURE-RIGHT REAR
Color :
# of pins : 6
Qualifier : (TIRE PRESSURE MONITOR)
Pin Circuit Description
1 F924 20PK/YL FUSED RUN RELAY OUTPUT
2 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
3 Z925 20BK GROUND
4 - -
5 - -
6 Z925 20BK GROUND
Component Location - 71
