2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Media System-Monitor/DVD
Component ID: 202

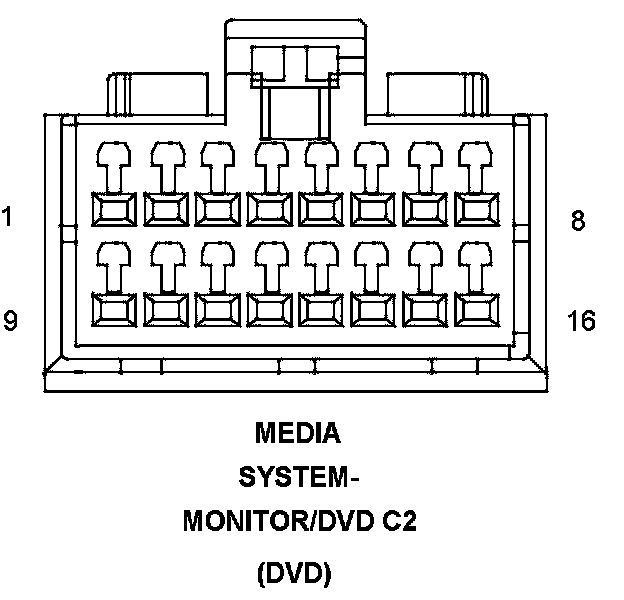

Component : MEDIA SYSTEM-MONITOR/DVD
Connector:
Name : MEDIA SYSTEM-MONITOR/DVD
Color :
# of pins : 16
Pin Circuit Description
1 D55 20WT/OR FUSED B(+)
2 Z909 20BK/OR GROUND
3 - -
4 - -
5 - -
6 X975 20DG/VT SDARS VIDEO SHIELD
7 X973 20DG/BK SDARS VIDEO SIGNAL COMMON
8 X974 20DG/WT SDARS VIDEO SIGNAL
9 D54 20WT CAN B BUS (-)
10 A114 20GY/RD FUSED B(+)
11 - -
12 - -
13 - -
14 X18 20GY/YL SDARS RIGHT AUDIO SIGNAL
15 X918 20GY SDARS AUDIO SIGNAL COMMON
16 X19 20GY/OR SDARS LEFT AUDIO SIGNAL
Component Location - 53
Component Location - 56
