2008 Jeep Commander 4WD V6-3.7L
Solenoid-Rear Differential
2008 Jeep Commander 4WD V6-3.7LSECTION Solenoid-Rear Differential
Component ID: 552

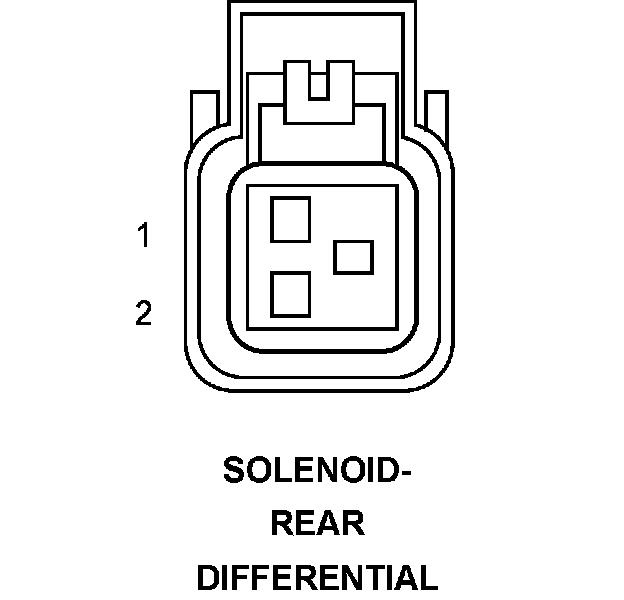

Component : SOLENOID-REAR DIFFERENTIAL
Connector:
Name : SOLENOID-REAR DIFFERENTIAL
Color :
# of pins : 2
Pin Circuit Description
1 T301 18DG/YL SWITCHED BATTERY SOLENOID SUPPLY
2 T312 18YL/VT REAR DIFFERENTIAL SOLENOID CONTROL

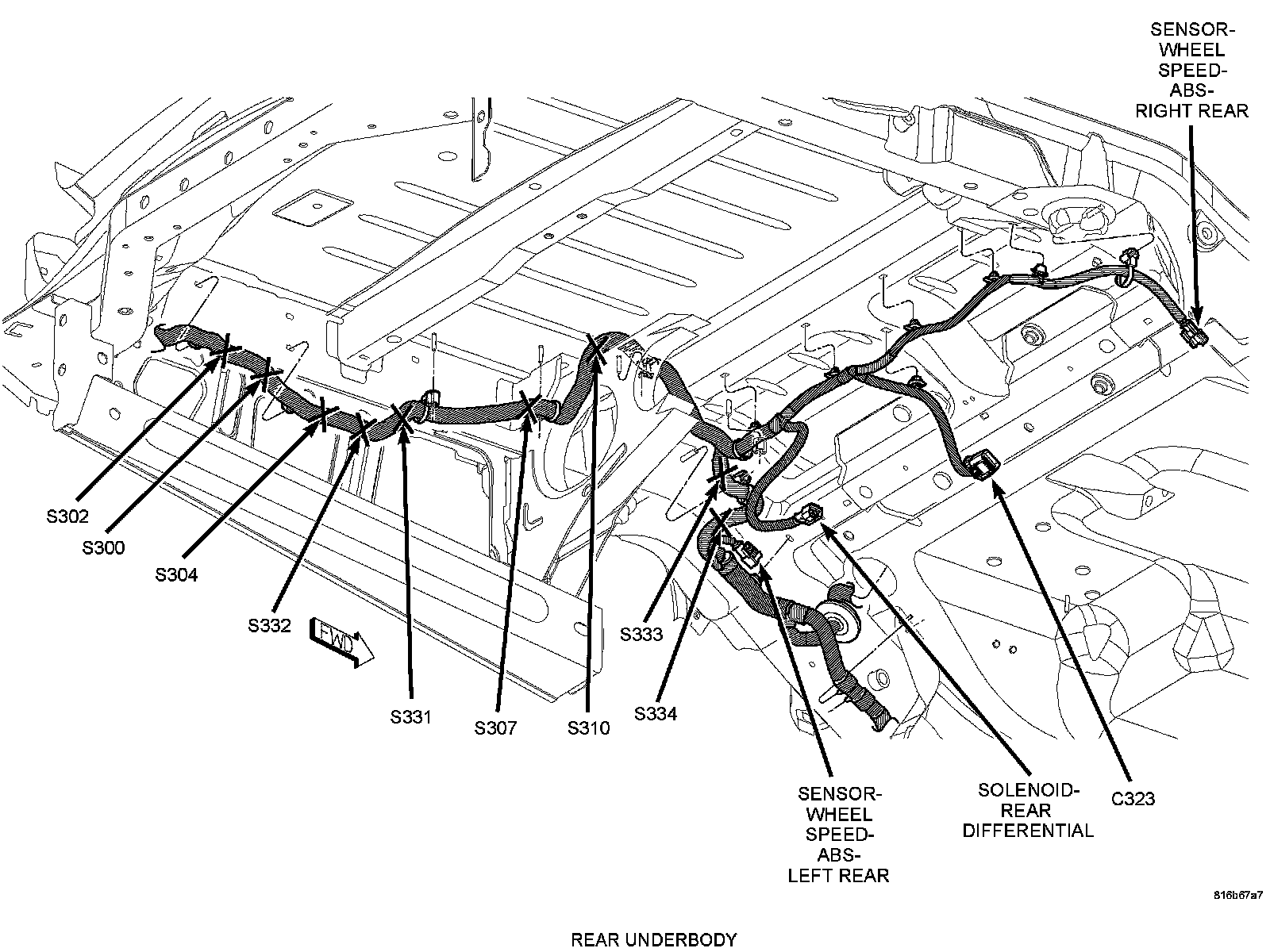

Component Location - 69
