2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Solenoid-Front Differential
Component ID: 545

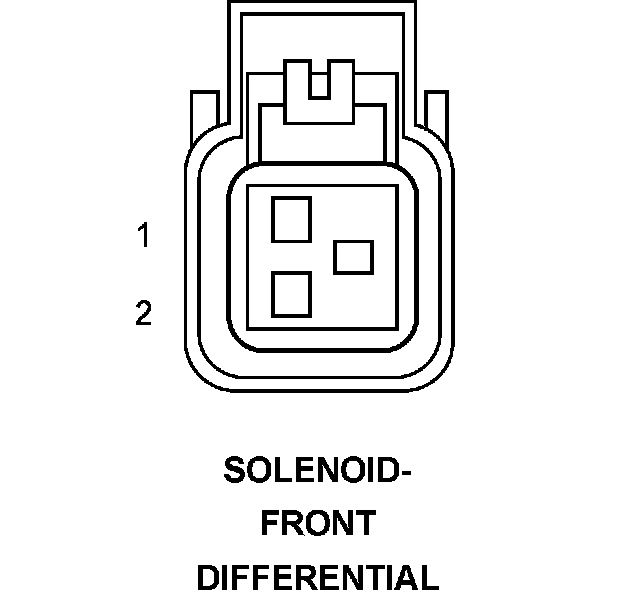

Component : SOLENOID-FRONT DIFFERENTIAL
Connector:
Name : SOLENOID-FRONT DIFFERENTIAL
Color :
# of pins : 2
Pin Circuit Description
1 T301 20DG/YL SWITCHED BATTERY SOLENOID SUPPLY
2 T306 20DG/DB FRONT DIFFERENTIAL SOLENOID CONTROL
Component Location - 32
