2008 Jeep Commander 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Solar Sensor, HVAC
Component ID: 536

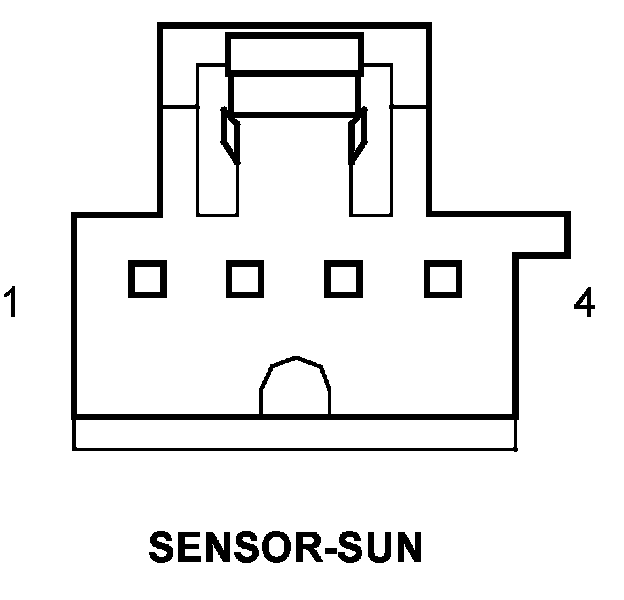

Component : SENSOR-SUN
Connector:
Name : SENSOR-SUN
Color :
# of pins : 4
Pin Circuit Description
1 - -
2 G39 20VT/LB SUN SENSOR NO. 1 SIGNAL
3 G139 20VT/OR SUN SENSOR NO. 2 SIGNAL
4 G939 20VT/DB SUN SENSOR RETURN
