2008 Jeep Commander 4WD V6-3.7L
Shifter A/T
2008 Jeep Commander 4WD V6-3.7LSECTION Shifter A/T
Component ID: 19

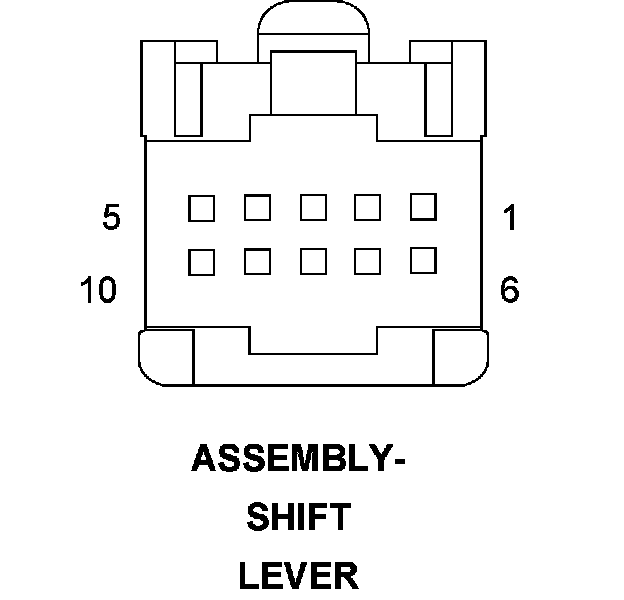

Component : ASSEMBLY-SHIFT LEVER
Connector:
Name : ASSEMBLY-SHIFT LEVER
Color :
# of pins : 10
Pin Circuit Description
1 Z907 20BK GROUND
2 K900 20DB/DG SENSOR GROUND
3 T5 20DG/YL AUTOSTICK UP/DOWN (ERS) SIGNAL
4 Z907 20BK GROUND
5 K321 20BR/YL BRAKE SWITCH SIGNAL
6 D64 20WT/LB CAN C BUS (-)
7 D65 20WT/LG CAN C BUS (+)
8 F1 20PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
9 E2 20OR/BR PANEL LAMPS DRIVER
10 T824 20YL/DB TRS PARK SIGNAL

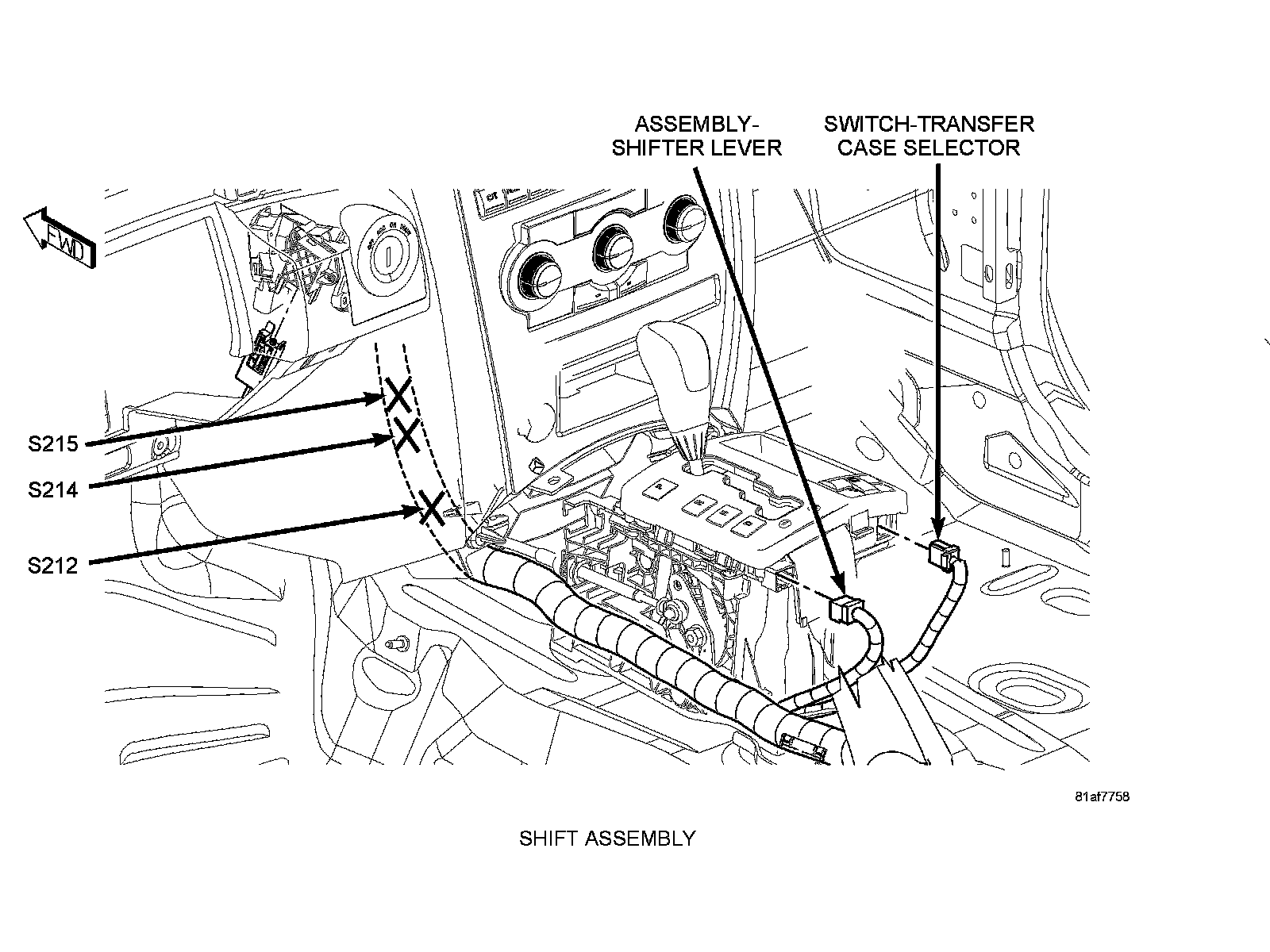

Component Location - 52
