2008 Jeep Commander 4WD V6-3.7L
Relay-Run/Accessory
2008 Jeep Commander 4WD V6-3.7LSECTION Relay-Run/Accessory
Component ID: 291

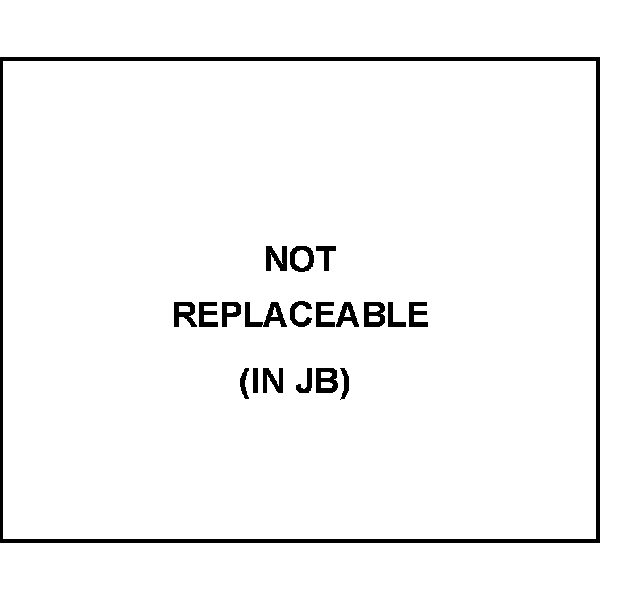

Component : RELAY-RUN/ACCESSORY
Connector:
Name : RELAY-RUN/ACCESSORY
Color :
# of pins : 0
30 A901 12RD/TN FUSED B(+)
85 F103 20PK/GY IGNITION RUN/ACC RELAY CONTROL
86 INTERNAL FUSED B(+)
87 INTERNAL RUN/ACCESSORY RELAY OUTPUT
87A - -
